Tektronix 465 User Manual

®
®I

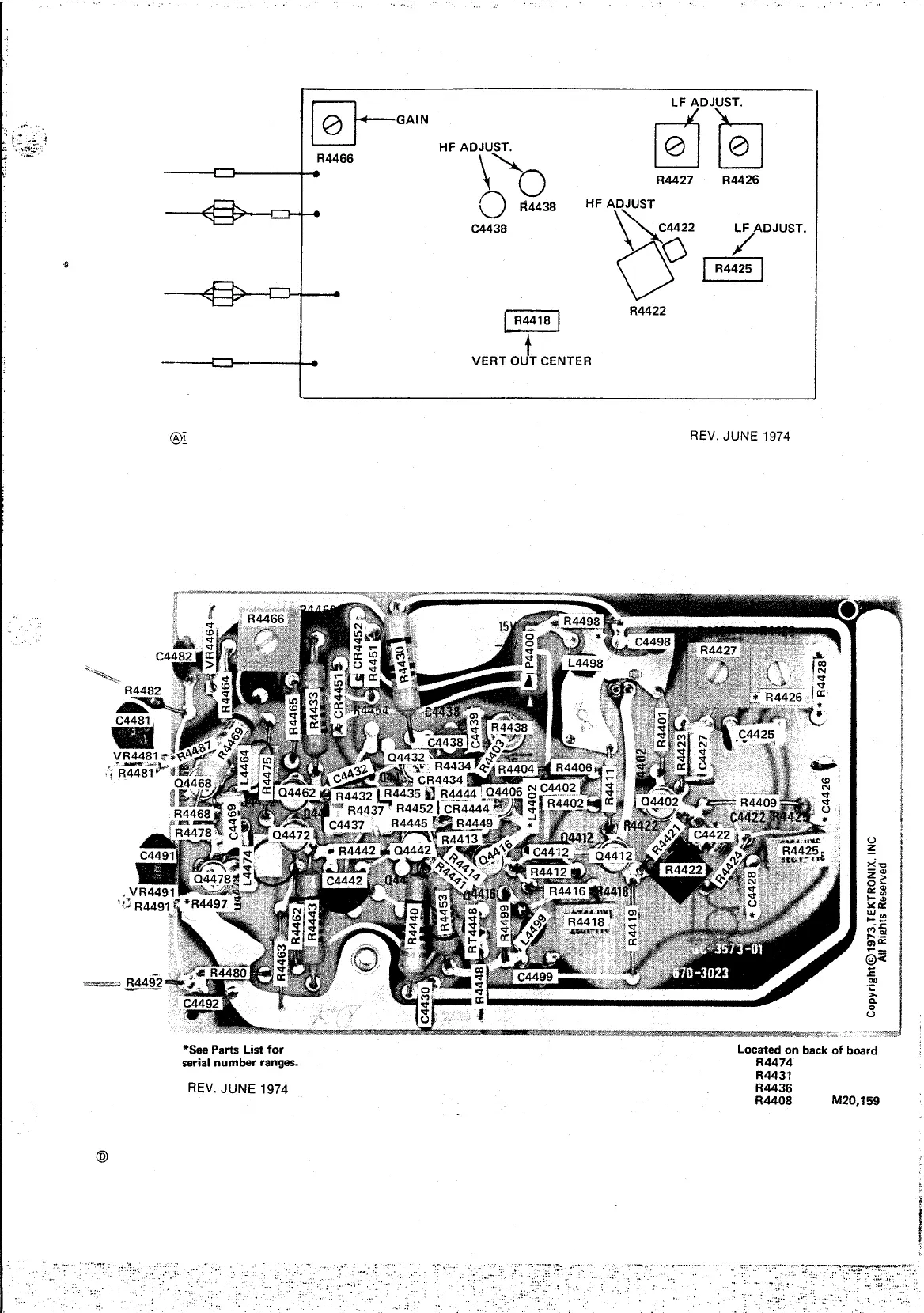

*See Parts List for
serial number ranges.
REV. JUNE 1974
~GAIN
R4466
..
_,,,. __ :.'
· .. :· : ... :.
HF ADJUST.
\"b
R4427
R4426
0 R4438
C4438
HF~ ___ /'--LF-ADJUST.
V R4425 I
R4418 I
VERT OJT CENTER
R4422
REV. JUNE 1974
Located on back of board
R4474
R4431
R4436
R4408 M20,159
~·- --:~.--· : •• ----~~..-!
·, .·: •••. It
": ;:;
·::·-:,·

Tektronix 465 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	5 mV/div to 5 V/div
Rise Time	3.5 ns
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Sources	CH 1, CH 2, LINE, EXT
Display	CRT
Type	Oscilloscope
Input Impedance	1 MΩ in parallel with 20 pF
Power Requirements	48-440 Hz
Maximum Input Voltage	400 V (DC + AC peak)
