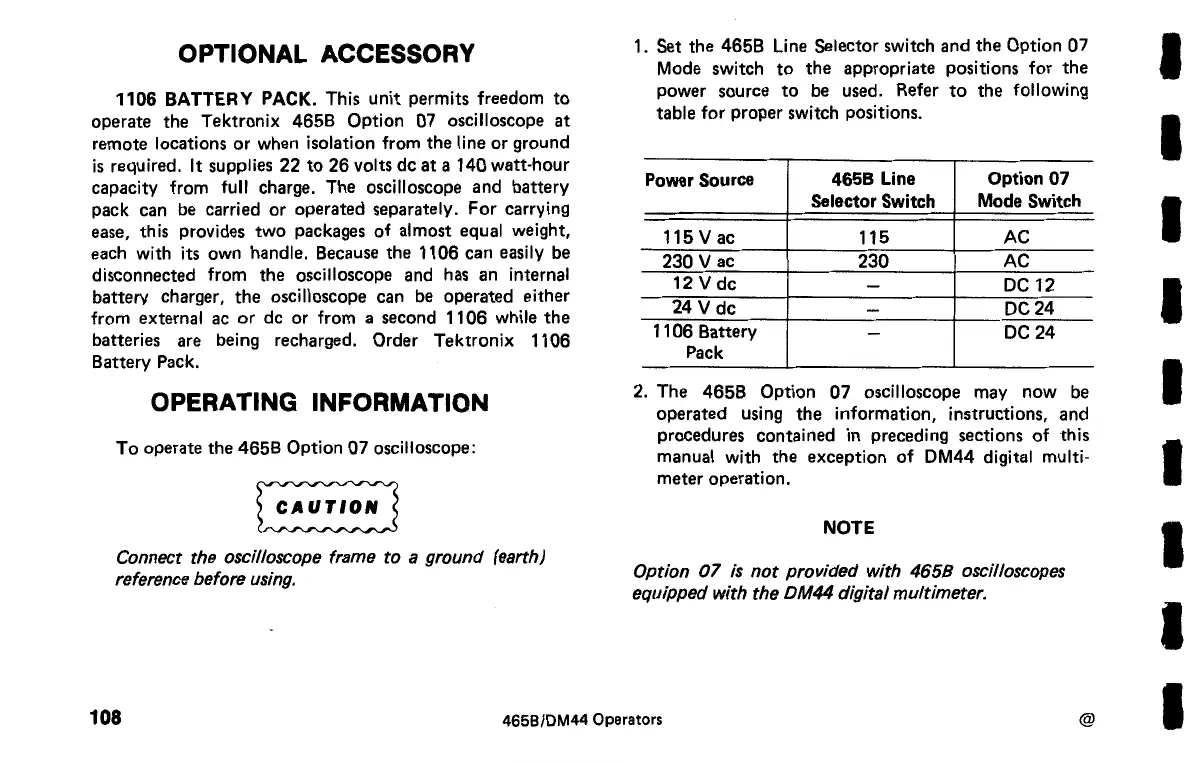

OPTIONAL ACCESSORY
1106
BATTERY PACK. This unit permits freedom
to
operate the Tektronix 465B Option 07 oscilloscope
at
remote locations
or
when isolation from the line or ground
is
required. It supplies 22
to
26 volts de
at
a
140
watt-hour
capacity from full charge. The oscilloscope and battery
pack can be carried
or
operated separately. For carrying
ease, this provides two packages
of
almost equal weight,
each with its own handle. Because the 1106 can easily be
disconnected from the oscilloscope and has an internal
battery charger,
the
oscilloscope can be operated either
from external ac
or
de or from a second 1106 while
the
batteries are being recharged. Order Tektronix 1106
Battery Pack.
OPERATING INFORMATION
To
operate the 465B Option
07
oscilloscope:
~
Connect the oscilloscope frame
to
a ground (earth)
reference before
using.
1. Set the 465B Line Selector switch and the Option 07
Mode switch
to
the appropriate positions for
the
power source
to
be
used. Refer
to
the following
table for proper switch positions.
Power Source
4658
Line
Option 07
Selector Switch
Mode Switch
115Vac
115
AC
230 V ac
230
AC
12
Vdc
-
DC12
24 V
de
-
DC
24
11
06 Battery
-
DC
24
Pack
2. The 465B Option
07
oscilloscope may now be
operated using the information, instructions, and
procedures contained
in
preceding sections
of
this
manual with the exception
of
DM44 digital multi-
meter operation.
NOTE
Option
07
is
not
provided with
4658
oscilloscopes
equipped with the DM44 digital multimeter.
108
465B/DM44 Operators
@
