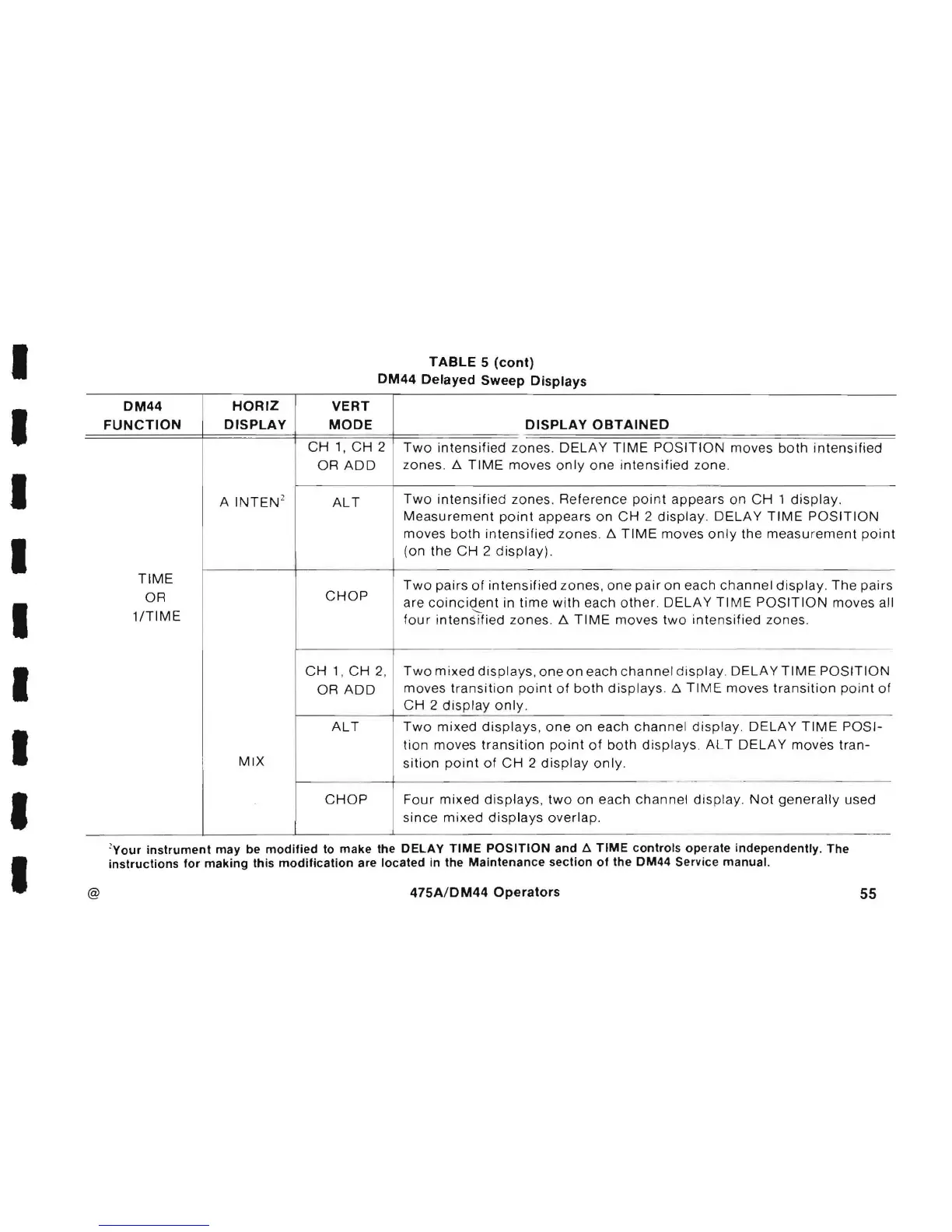

TABLE 5 (cont)
DM44 Delayed Sweep Displays
DM44 HORIZ VERT
FUNCTION
DISPLAY
MODE
DISPLAY OBTAINED
CH 1, CH 2
Two intensified lone s. DELA Y TIME POSI TION mov es both i nt e nsified
OR ADD
lones . ~ TIME moves only on e intensified zone .
A
INTEN 2
All
Two intensifie d lones . Reference point appears on CH 1 display.
Measurement point appea rs on CH 2 display . DELAY TIME POSITION
moves both intensified zones. ~ TIME moves only the measurem e nt point
(on the CH 2 display) .
TIME
Two pairs of intensified lones, one pair on each channel display . The pairs
OR
CHOP
are coincident in time with each other DELAY TIME POSITION moves all
1fTIME
"-
four intensified lones . ~ TIME mov es two intensified lones .
CH 1, CH 2, Two mixed displays, one on each ch a nn el d isplay . DELA Y TIME POSITION
OR ADD
moves transit i on point of both displays . /:; TIME moves transition po i nt of
CH 2 display only .
All Two mixed displays , one on each channe l display . DELAY TIME POSI-
tion moves transition point of both displ ays AL T DELA Y moves tran-
MIX
sition point of CH 2 display only.
..
.-
CHOP Four mixed displays, two on each channel display . Not generally used
since mixed displays overlap.
'Your instrument may be modified to make the DELAY TIME POSITION and 6. TIME controls operate independently . The
instructions for making this modification are located In the Maintenance section of the DM44 Service manual .
@ 475AfDM44 Operators 55
