Tektronix 47E5A User Manual

DM44
HORIZ
VERT
FUNCTION
DISPLAY MODE
any
one of:
CH 1, CH 2
or A TRIG
VIEW
CH 1 and
AINTENb
CH 2 and
CHOP
CH 1 and
TIME
CH 2 and
or
ALT
1/TIME
any one of:
CH 1, CH 2,
A TRIG
ALT
VIEW or
ADD
66

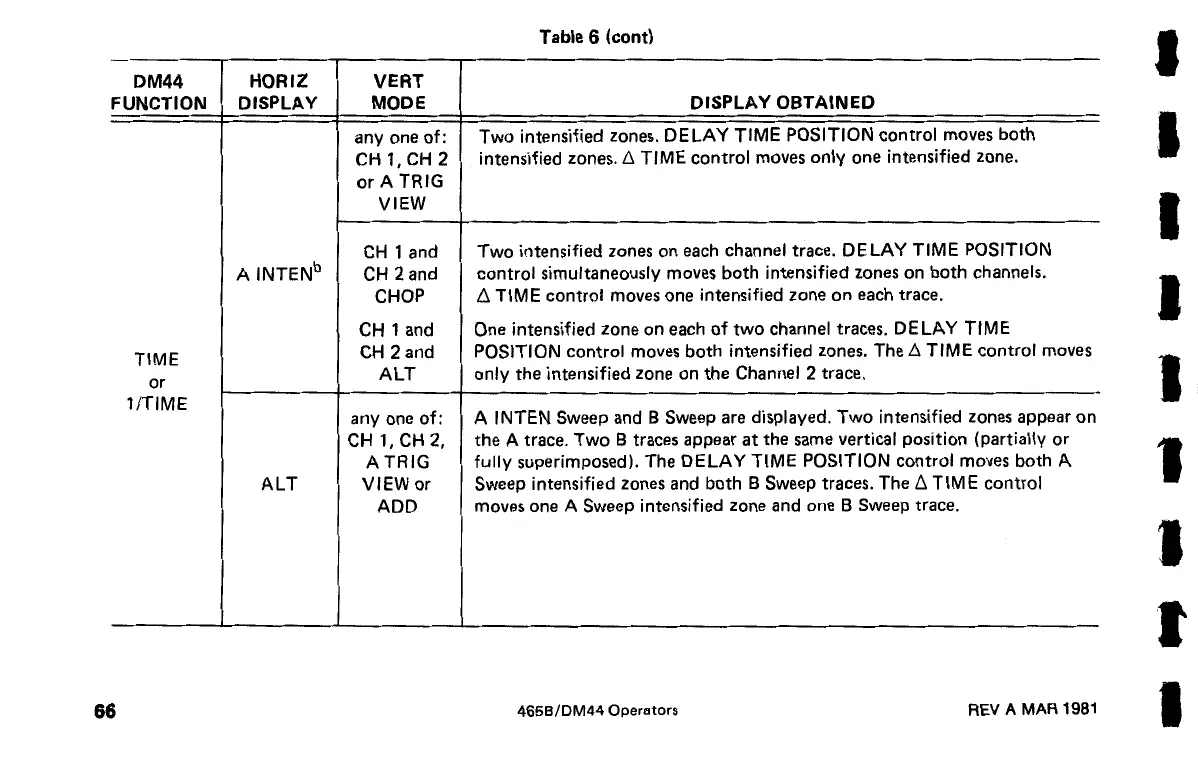

Table 6 (coot)
DISPLAY OBTAINED
Two intensified zones. DELAY TIME POSITION control moves both
intensified
zones. !J. TIME control moves only one intensified zone.
Two intensified zones on each channel trace. DELAY TIME POSITION
control simultaneously
moves both intensified zones on both channels.
!J. TIME control moves one intensified zone on each trace.
One intensified zone on each of two channel traces. DELAY Tl ME
POSITION control moves both intensified zones. The !J. TIME control moves
only the intensified zone on the Channel 2 trace.
A INTEN Sweep and B
Sweep are displayed. Two intensified zones appear on
the A trace.
Two B traces appear at the same vertical position (partially or
fully superimposed). The DELAY TIME POSITION control moves both A
Sweep intensified zones and both B Sweep traces. The !J. TIME control
moves
one A Sweep intensified zone and one B Sweep trace.
465B/DM44 Operators
REV A MAR 1981
I
I
I
I
I
1
I
I
I
