DM44
HORIZ
FUNCTION DISPLAY
A INTENa
VOLTS,
OHMS,
or TEMP
ALT
REV A MAR 1981

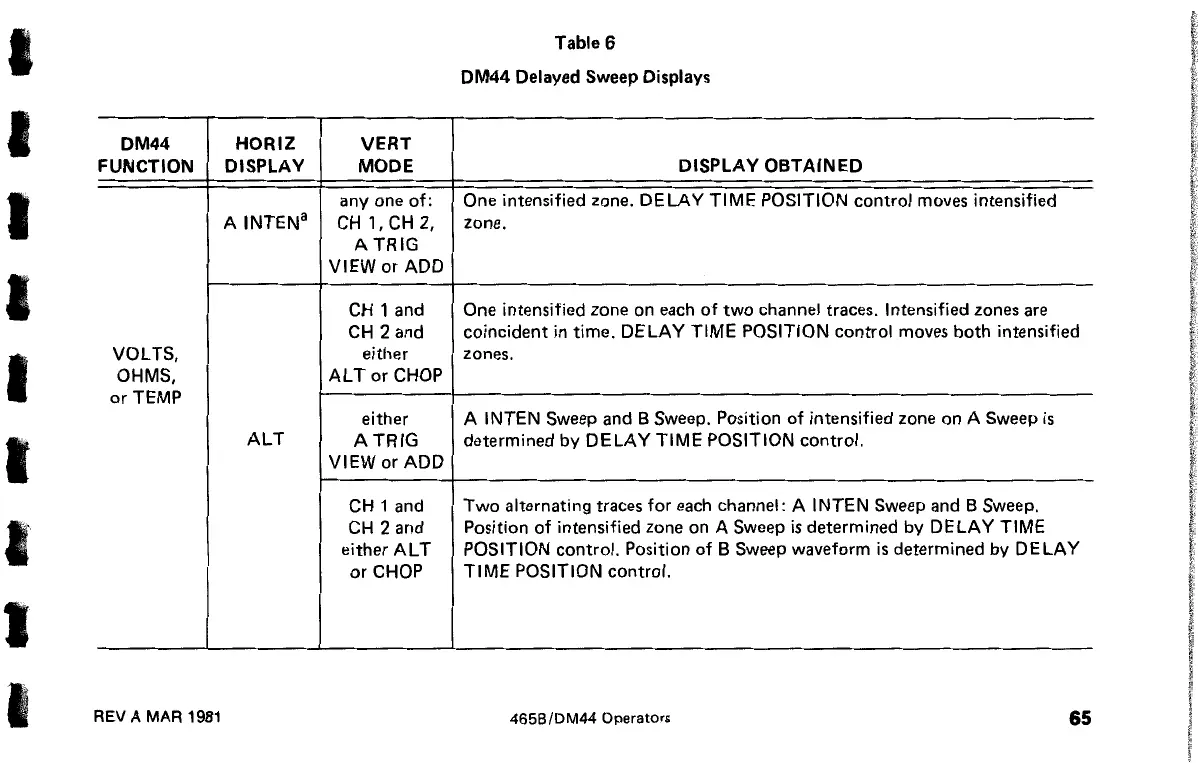

Table 6
DM44 Delayed Sweep Displays
VERT
MODE
DISPLAY OBTAINED
any one of:
One intensified zone. DELAY Tl
ME POSITION control moves intensified
CH 1, CH 2, zone.
A TRIG
VIEW or ADD
CH 1 and
One intensified zone on each of two channel traces. Intensified zones are
CH 2 and
coincident in time. DELAY TIME POSITION control moves both intensified
either zones.
ALTor CHOP
either
A INTEN Sweep and B Sweep. Position of intensified zone on A Sweep is
A TRIG
determined
by DELAY TIME POSITION control.
VIEW or ADD
CH 1 and
Two alternating traces for each channel: A IN TEN Sweep and B Sweep.
CH 2 and
Position of intensified zone on A Sweep is determined by DELAY TIME
either ALT
POSITION control. Position of
B Sweep waveform is determined by DELAY
or
CHOP
TIME POSITION control.
4658/DM44 Operators
65
