Tektronix 47E5A

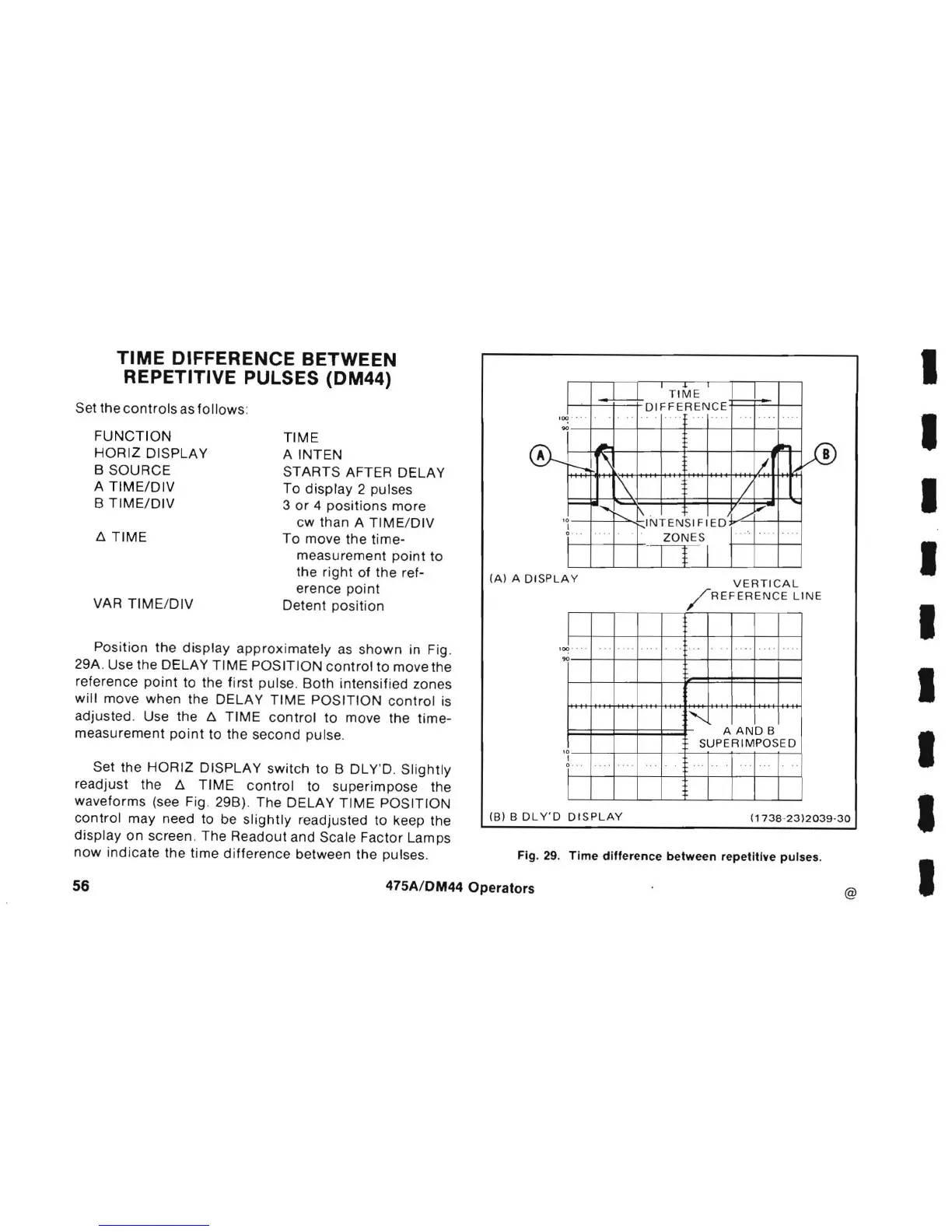

TIME DIFFERENCE BETWEEN
REPETITIVE PULSES (DM44)
Set the controls as follows:
FUNCTION
HORIZ DISPLAY
8 SOURCE
A TIME/DIV
8 TIME/DIV
A TIME
VAR TIME/DIV
TIME
AINTEN
STARTS AFTER DELAY
To display 2 pulses
3 or 4 positions more
cw than A TIME/DIV
To move the time-
measurement point to
the
right of the ref-
erence
pOint
Detent position
Position the display approximately as shown in Fig .
29A. Use the
DELAY TIME POSITION control to move the
reference
pOint to the fi rst pulse . 80th intensified zones
will move when the DELAY TIME POSITION control is
adjusted. Use the A TIME control to move the time-
measurement pOint to the second pulse .
Set
the HORIZ DISPLAY switch to 8 DLY'D . Slightly
readjust the A TIME control to superimpose the
waveforms (see Fig . 298) . The DELAY TIME POSITION
control may need to be slight ly readjusted to keep the
display on screen. The Readout and Scale Factor Lamps
now indicate the time difference between the pulses.
--1-
TIME
r- r--
,~ ...
DIFFERENCE
90
®--
-
II!:
~
b
r\
lL
1&
1\
/
r-
"
~INTENSI F I ED
".
,.
'-, ./
I
t
. .
(A) A DISPLAY
1
,.
I
1
(B) B DL Y'D DISPLAY
ZONES
1
VERTICAL
/REFERENCE LINE
1'-.
A AND B
SUPERIMPOSED
(1738 - 23)2039-30
Fig. 29. Time difference between repetitive pulses.
56
475A/OM44 Operators
@
