Connect the reference signal to the CH 1 i nput and the
comparison signal to the CH 2 input . Connect the signals
to the inputs with cables or probes having equal time
delays .
Adjust the DELAY TIME POSITION control to move the
reference pO i nt to the desired spot on the reference (CH 1)
display (see Fig . 31A, Point A) . In the AL T vertical mode
the reference point appears on the CH 1 display while the
time-measurement pOint appears on the CH 2 display .
CHANNEL 1 (REFERENCE)
CHANNEL 2
50 %
AMP LI TU D E -!- +- --~ -+- Pl -r- -+- -t------,
LEVEL i MEASURE
r-- +-I--=::~ c---~..cL+-+-- ----+ - TI M E
INTENSIFIED -t--_ I- -:- ---c
FROM
A TO B
~'-"""'d- ZONES
I
-.l HORIZONTAL t--.
I DIFFERENCE
Adjust the t::. TIME control to move the time -
measurement pOint to the desired spot on the CH 2 display
(see Fig. 31A , Point 8) .
Set the HORIZ DISPLAY swi tch to 8 DLY 'D. Slightly
readjust the DELAY TIME POSITION and t::. TIME controls
to superimpose the waveforms (see Fig. 318) . The
Readout and Scale Factor Lamps indicate the time
difference .
(465 / DM ·0 · '0)2039 · 32

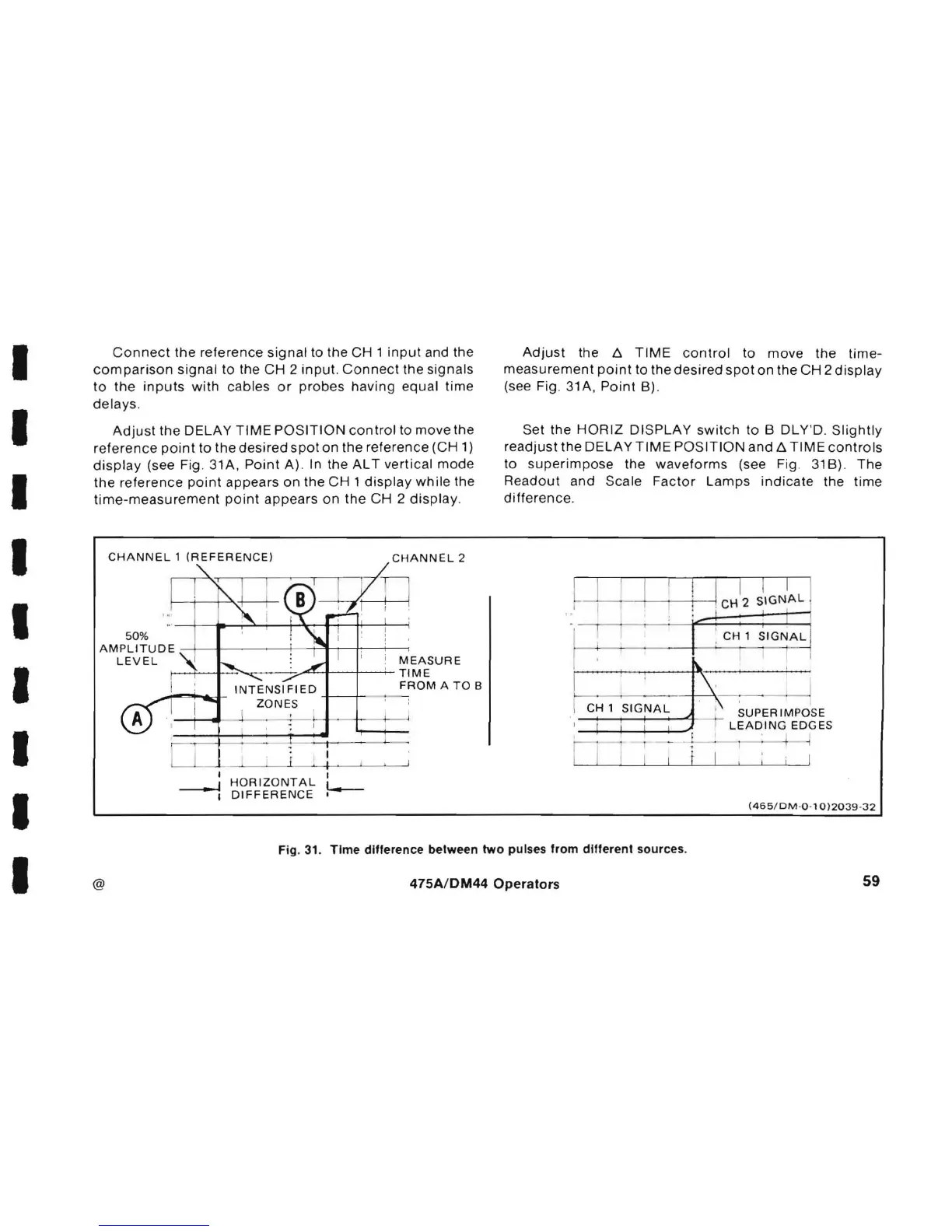

Fig. 31. Time difference between two pulses from different sources.
@
475A/OM44 Operators
