I

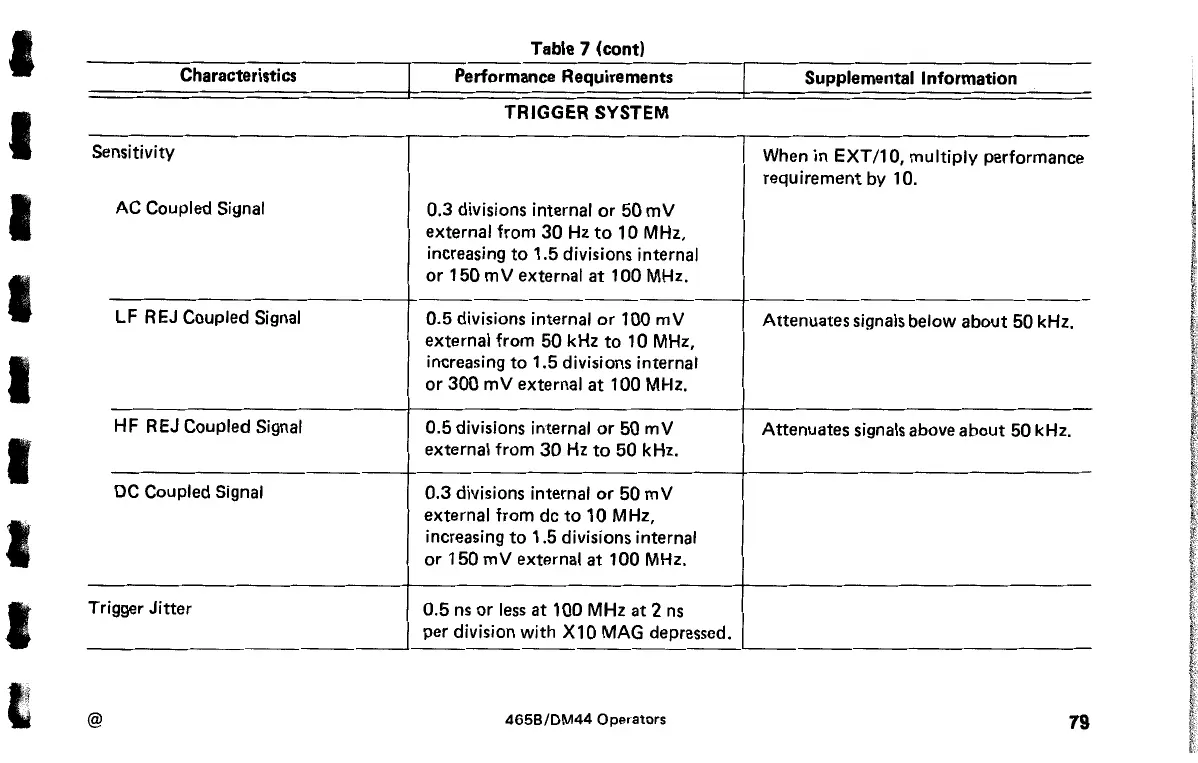

Table 7 (cont)
Characteristics
Performance Requirements
Supplemental Information
I
TRIGGER SYSTEM
Sensitivity
When in EXT /10, multiply performance
requirement by 10.
I
AC Coupled Signal
0.3 divisions internal
or 50 mV
external from 30 Hz to 10 MHz,
increasing
to 1.5 divisions internal
I
or 150 mVexternal at 100 MHz.
LF
REJ Coupled Signal
0.5 divisions internal or 100 mV
Attenuates signals below about 50 kHz.
external from 50 kHz
to 10 MHz,
I
increasing to 1.5 divisions internal
or 300 mV external at 100 MHz.
I
HF REJ Coupled Signal
0.5 divisions internal
or 50 mV
Attenuates signals above about 50 kHz.
external from
30 Hz to 50 kHz.
DC Coupled Signal
0.3 divisions internal
or 50 mV
I
external from de to 10 MHz,
increasing
to 1.5 divisions internal
or 150 mVexternal at 100 MHz.
I
Trigger Jitter
0.5 ns or less at 100 MHz at 2 ns
per division with X10 MAG depressed.
t
@ 465B/DM44 Operators
79
