Tektronix 47E5A

475A/DM44
MOD PG

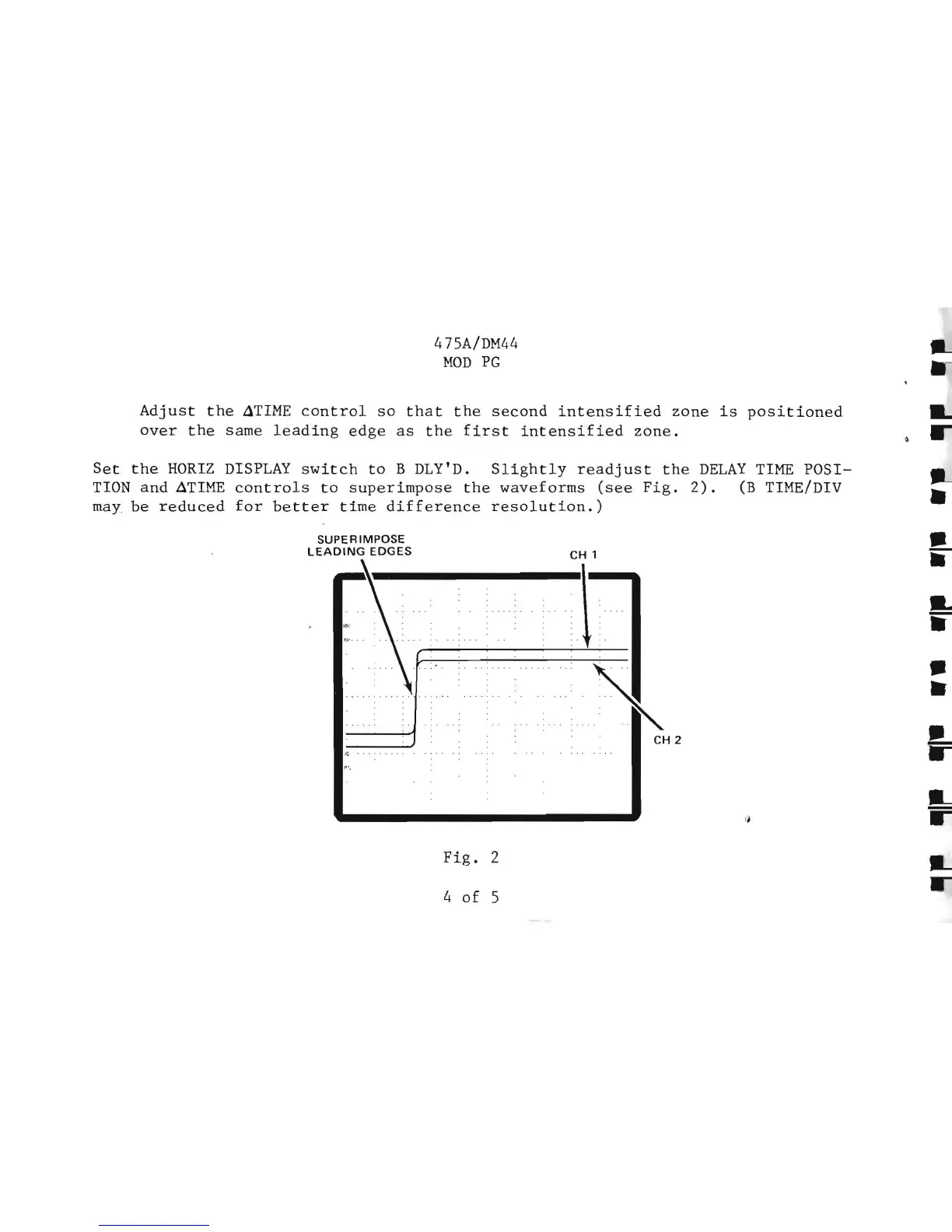

Adjust the ~TIME control so that the second intensified zone is positioned
over the same leading edge as the first intensified zone.
Set the HORIZ DISPLAY switch to B DLy'D. Slightly readjust the DELAY TIME POSI-
TION and ATIME controls to superimpose the waveforms (see Fig. 2). (B TIME/DIV
may
be reduced for better time difference resolution.)
SUPERIMPOSE
LEADING EDGES
Fig. 2
4 of 5
CH 1
\
'I
..... ~
CH 2
<j
L
.-
L
r
--
•
•
iI
L
..
•
•
•
iF
L
.-
