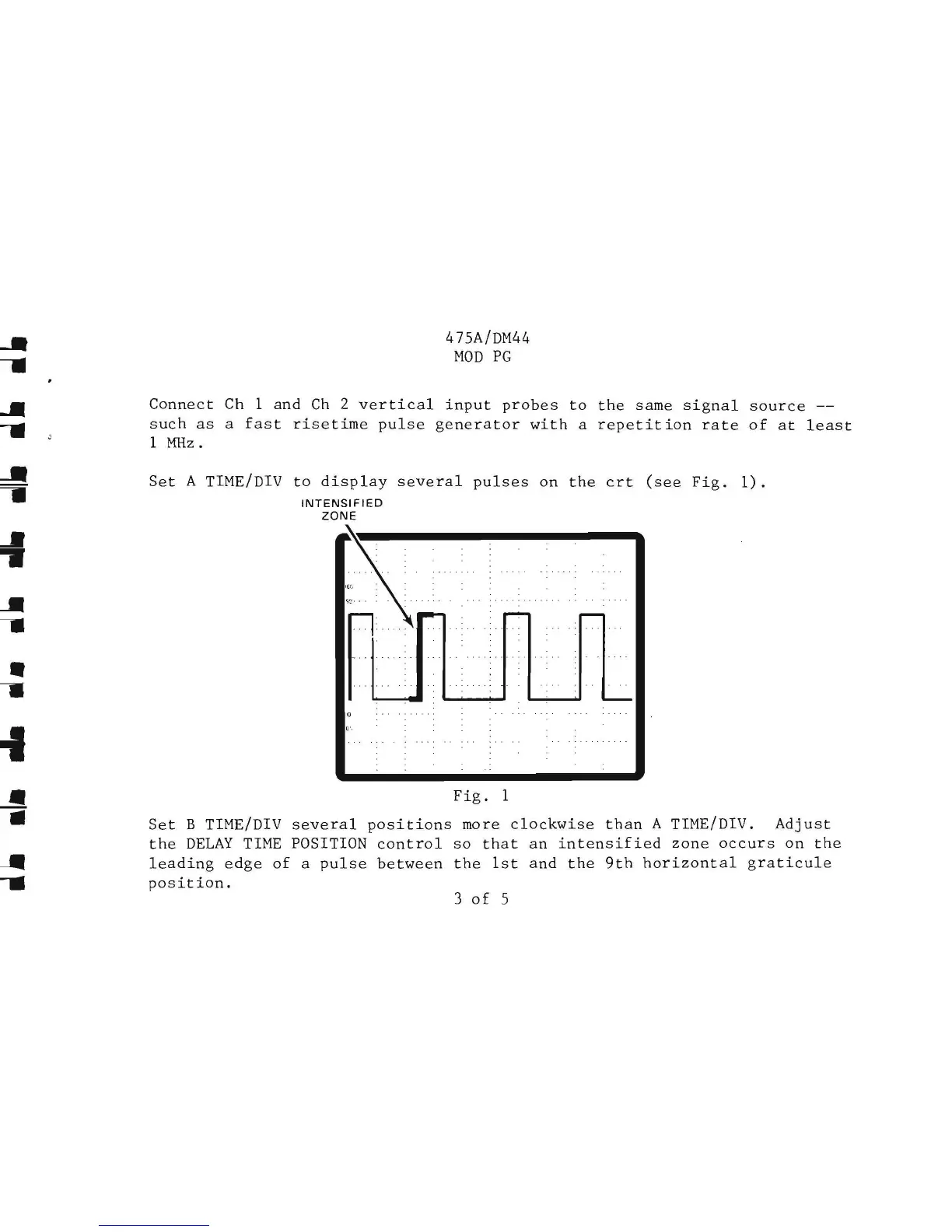

475A/DM44
MOD
PG
Connect
Ch
1 and
Ch
2
vertical
input
probes
to
the
same
signal
source
--
such
as
a
fast
risetime
pulse
generator
with
a
repetition
rate
of
at
least
1
MHz.
Set
A TIME/DIV
to
display
several
pulses
on
the
crt
(see
Fig.
1).
INTENSIFIED
ZONE
Fig.
1
Set
B TIME/DIV
several
positions
more
clockwise
than
A TIME/DIV.
Adjust
the
DELAY
TIME
POSITION
control
so
that
an
intensified
zone
occurs
on
the
leading
edge
of
a
pulse
between
the
1st
and
the
9th
horizontal
graticule
position.
3
of
5
