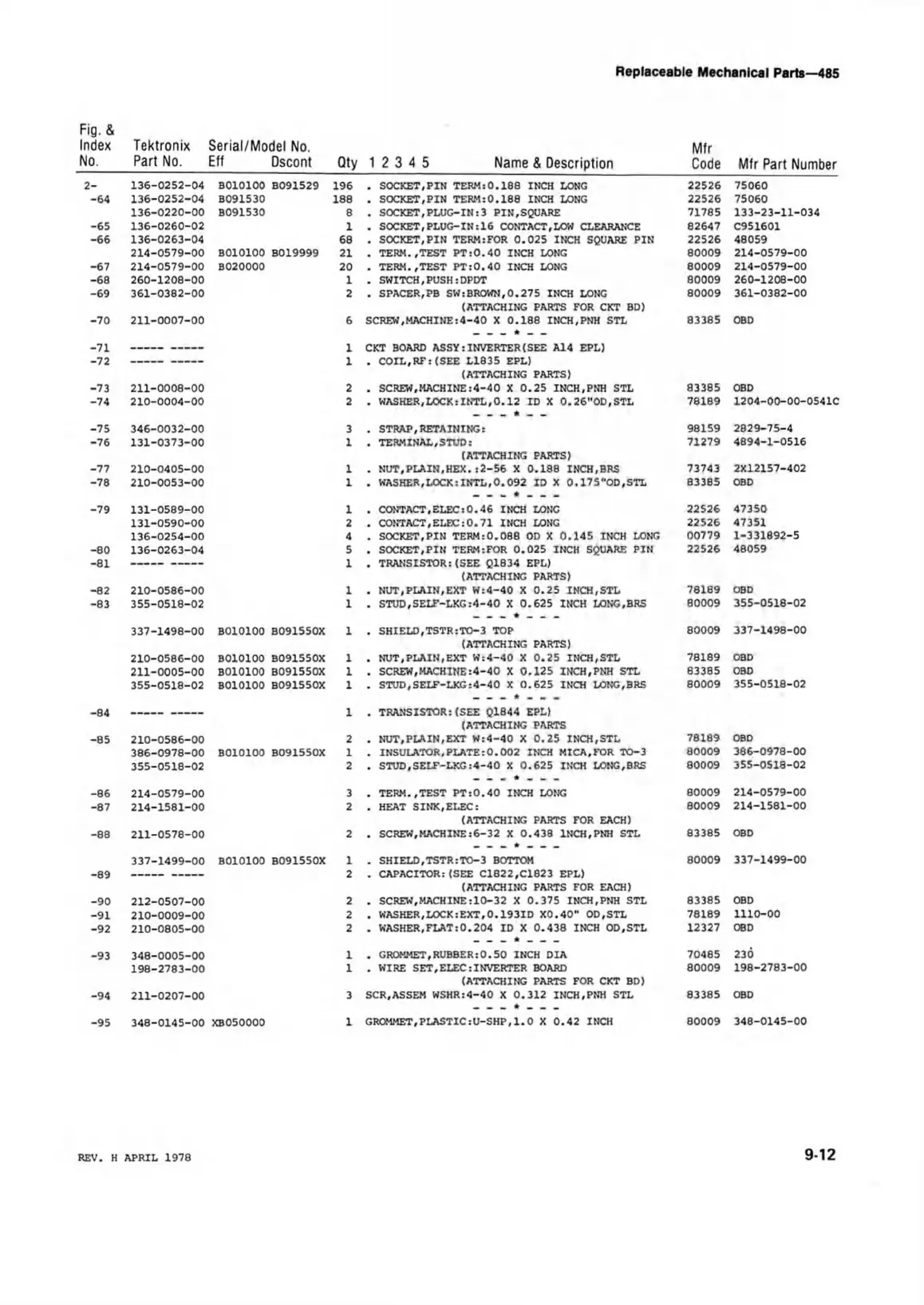

Tektronix 485

Replaceable Mechanical Parts—485
Fig. &
Index
No.
Tektronix
Part No.
Serial/Model No.
Eft Dscont
Qty
1 2 3 4 5 Name & Description
Mfr
Code Mfr Part Number
2-
136-0252-04 B010100
B091529
196
SOCKET,PIN TERM:0.188 INCH LONG 22526 75060
-64
136-0252-04 B091530
188
•
SOCKET,PIN TERM:0.188 INCH LONG 22526
75060
136-0220-00 B091530
8
•
SOCKET,PLUG-IN:3 PIN,SQUARE
71785 133-23-11-034
-65
136-0260-02
1
SOCKET,PLUG-IN: 16 CONTACT,LOW CLEARANCE
82647
C951601
-66 136-0263-04 68
a
SOCKET,PIN TERM:FOR 0.025 INCH SQUARE PIN 22526 48059
214-0579-00 B010100
B019999
21
.
TERM..TEST PT:0.40 INCH LONG 80009 214-0579-00
-67 214-0579-00 B020000 20
.
TERM..TEST PT:0.40 INCH LONG 80009
214-0579-00
-68 260-1208-00 1
.
SWITCH,PUSH:DPDT 80009 260-1208-00
-69 361-0382-00 2
•
SPACER,PB SW:BROWN,0.275 INCH LONG 80009
361-0382-00
(ATTACHING PARTS FOR CKT BD)
-70
211-0007-00 6 SCREW,MACHINE:4-40 X 0.188 INCH.PNH STL
83385
OBD
-71
1
CRT BOARD ASSY : INVERTER (SEE A14 EPL)
-72
1
.
COIL,RF:(SEE L1835 EPL)
(ATTACHING PARTS)
-73
211-0008-00
2
.
SCREW,MACHINE:4-40 X 0.25 INCH.PNH STL
83385 OBD
-74
210-0004-00
2
•
WASHER,LOCK:INTL,0.12 ID X 0.26"OD,STL 78189 1204-00-00-0541C
-75 346-0032-00 3
STRAP,RETAINING: 98159
2829-75-4
-76
131-0373-00
1
.
TERMINAL,STUD: 71279
4894-1-0516
(ATTACHING PARTS)
-77
210-0405-00 1
.
NUT,PLAIN,HEX.:2-56 X 0.188 INCH.BRS 73743
2X12157-402
-78 210-0053-00 1
•
WASHER,LOCK:INTL,0.092 ID X 0.175"OD,STL 83385
OBD
-79
131-0589-00 1
CONTACT,ELEC:0.46 INCH LONG 22526
47350
131-0590-00
2
.
CONTACT,ELEC:0.71 INCH LONG 22526
47351
136-0254-00
4
a
SOCKET,PIN TERM:0.088 OD X 0.145 INCH LONG
00779 1-331892-5
-80 136-0263-04
5
•
SOCKET,PIN TERM:FOR 0.025 INCH SQUARE PIN
22526 48059
-81
1
#
TRANSISTOR:(SEE Q1834 EPL)
(ATTACHING PARTS)
-82
210-0586-00
1
NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL
78189
OBD
-83
355-0518-02 1
•
STUD,SELF-LKG:4-40 X 0.625 INCH LONG,BRS 80009
355-0518-02
337-1498-00
B010100
B091550X 1
SHIELD,TSTR:TO-3 TOP
80009 337-1498-00
(ATTACHING PARTS)
210-0586-00
B010100 B091550X 1
.
NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL
78189 OBD
211-0005-00 BOIOIOO
B091550X
1
.
SCREW,MACHINE:4-40 X 0.125 INCH.PNH STL
83385 OBD
355-0518-02 B010100
B091550X 1
•
STUD,SELF-LKG:4-40 X 0.625 INCH LONG.BRS 80009
355-0518-02
-84
___ ___
1
TRANSISTOR:(SEE Q1844 EPL)
(ATTACHING PARTS
-85
210-0586-00
2
. NUT,PLAIN,EXT W:4-40 X 0.25 INCH,STL
78189
OBD
386-0978-00
BOIOIOO B091550X 1
. INSULATOR,PLATE:0.002 INCH MICA,FOR TO-3 80009 386-0978-00
355-0518-02
2
•
STUD,SELF-LKG:4-40 X 0.625 INCH LONG.BRS
80009 355-0518-02
-86 214-0579-00
3
TERM..TEST PT:0.40 INCH LONG
80009
214-0579-00
-87
214-1581-00
2
.
HEAT SINK,ELEC:
80009
214-1581-00
(ATTACHING PARTS FOR EACH)
-88
211-0578-00
2
•
SCREW,MACHINE:6-32 X 0.438 INCH,PNH STL 83385
OBD
337-1499-00
BOIOIOO
B091550X
1
.
SHIELD,TSTR:TO-3 BOTTOM 80009
337-1499-00
-89
—
2
.
CAPACITOR:(SEE C1822.C1823 EPL)
(ATTACHING PARTS FOR EACH)
-90 212-0507-00
2
.
SCREW,MACHINE:10-32 X 0.375 INCH.PNH STL
83385
OBD
-91 210-0009-00
2
•
WASHER,LOCK:EXT,0.193ID X0.40" OD.STL
78189
1110-00
-92 210-0805-00
2
•
WASHER,FLAT:0.204 ID X 0.438 INCH OD.STL
12327 OBD
-93 348-0005-00
1
.
GROMMET,RUBBER:0.50 INCH DIA
70485 230
198-2783-00
1
.
WIRE SET,ELEC:INVERTER BOARD
80009
198-2783-00
(ATTACHING PARTS FOR CKT BD)
-94
211-0207-00
3
SCR.ASSEM WSHR:4-40 X 0.312 INCH.PNH STL 83385
OBD
-95 348-0145-00
XB050000
1
GROMMET,PLASTIC:U-SHP,1.0 X 0.42 INCH 80009 348-0145-00
