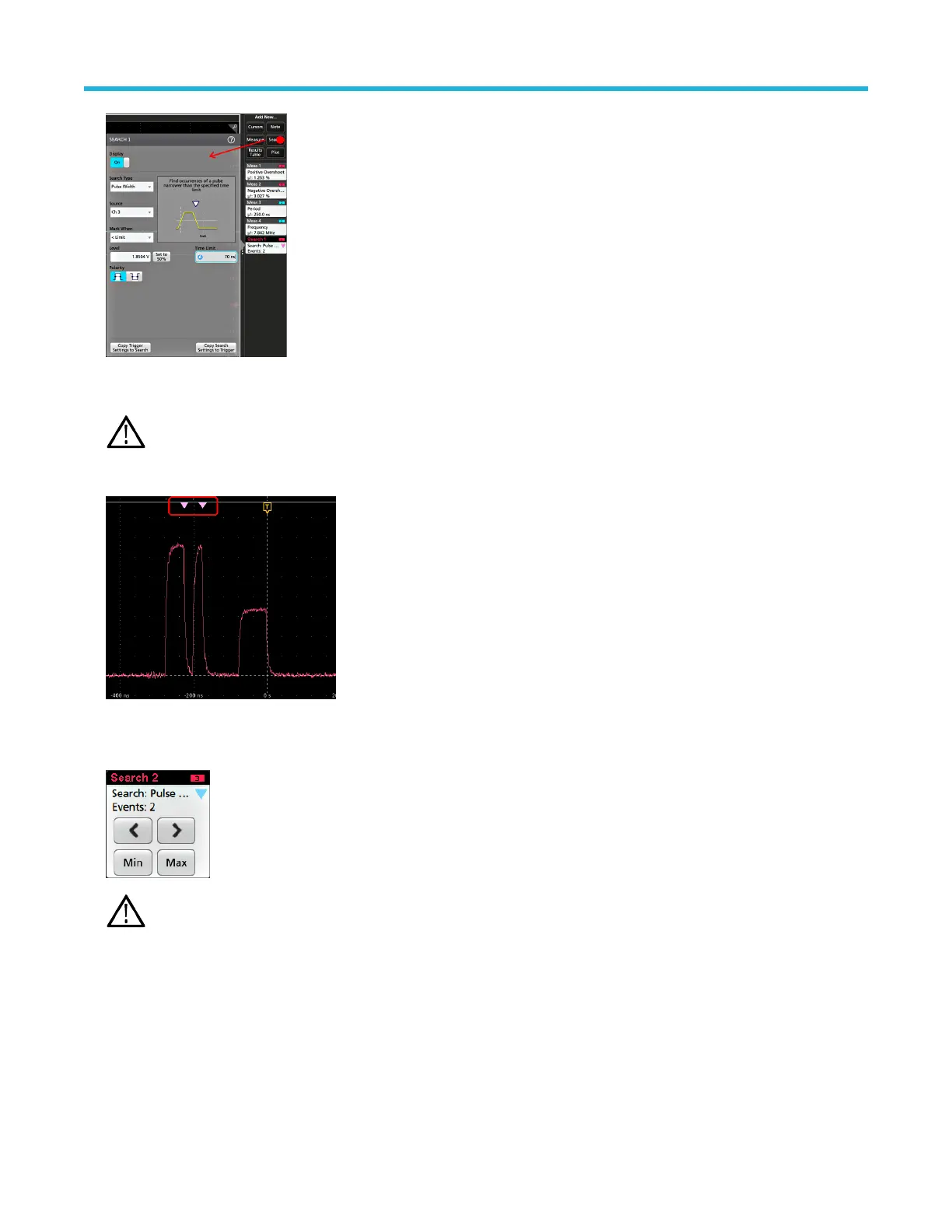

2. Use the configuration menu fields to set the search criteria in the same way that you would set for a trigger condition (select the
Search Type, Source, and conditions on which to search).
Note: You cannot search for sequential events (there is no Sequence search type).
3. The searched waveform is marked with one or more triangles as soon as the search criteria becomes true. Each search uses a
different color for its markers. The example image shows search criteria set to find positive pulse widths that are less than 70 ns wide.
4. To stop showing marks on a waveform, double-tap the Search badge and tap Display to Off.
5. To move the waveform to center marks on the display, push the Run/Stop front panel button to stop acquisition, single-tap a Search
badge, and tap the < or > Navigation button.
Note:
Navigation buttons are only functional when the oscilloscope acquisition mode is set to Stop.
This opens the Zoom mode and moves the waveform to the previous or next event mark on the waveform.
6. If available for a search, tap the Min or Max button to center the waveform in the display at the minimum or maximum value of the
search events in the waveform record.
7. To return the instrument to normal acquisition mode, tap the Zoom icon in the upper right corner of the Waveform View to turn off
Zoom mode, and push the Run/Stop front-panel button to set it to Run mode.
Operating basics
56
