Operating Instructions— Type 503
SLOPE
SLOPE
Typical waveforms obtained with the
LEVEL control set in the + region.
Typical waveforms obtained with the
LEVEL control set in the — region.
SLOPE
When the LEVEL control is in the +
region, the sweep is triggered on the
upper portion of the waveform; when
it is set in the — region, the sweep is
triggered on the lower portion of the
waveform.
©
2-7

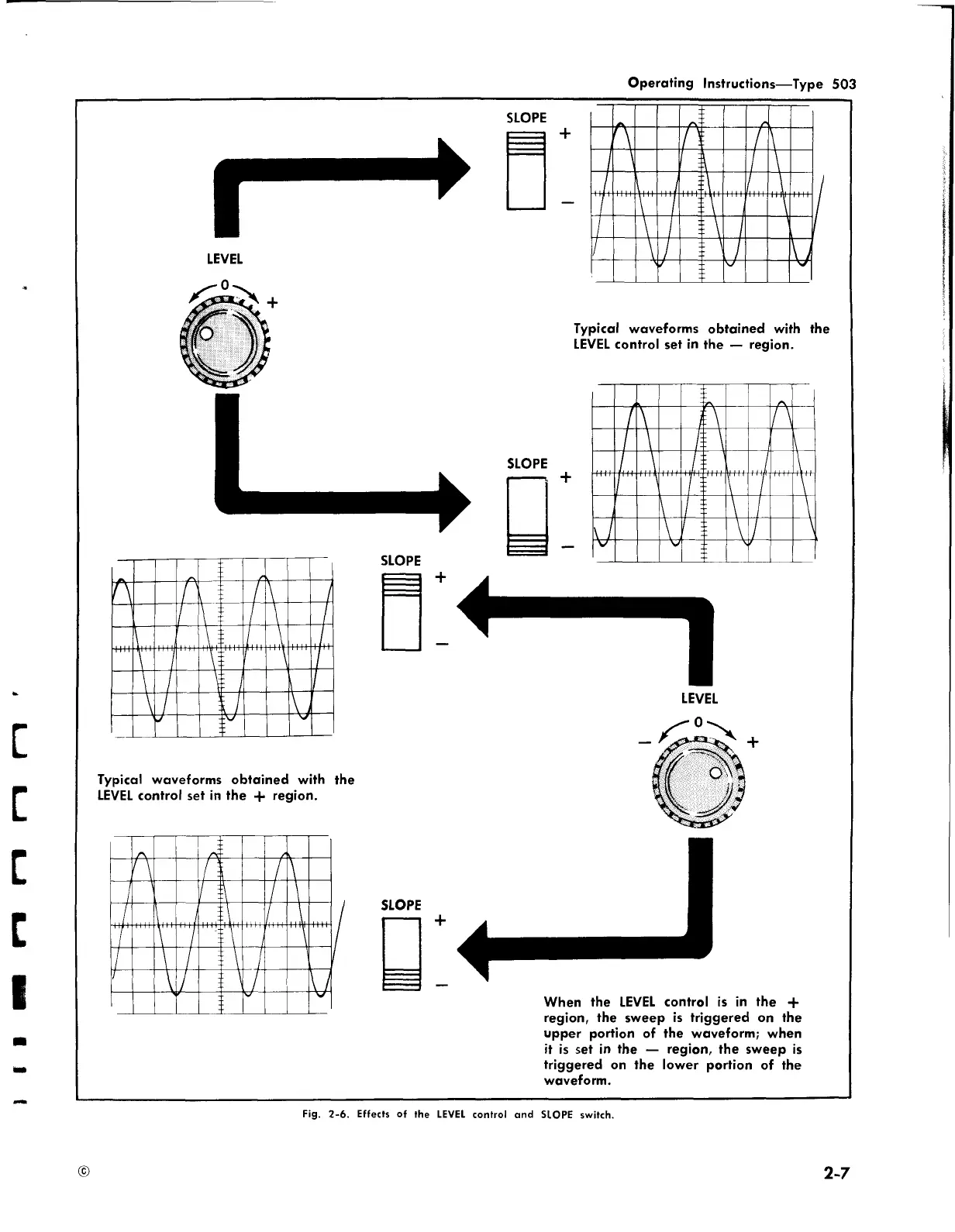

Fig. 2-6. Effects of the LEVEL control and SLOPE switch.
