Tektronix A622 User Manual

Getting started
The A622 current probe enables a general purpose oscilloscope to
display AC and DC current signals up to 100 amps Peak (70 A RMS).
The A622 current probe can also make AC and DC measurements with
a multimeter by using the BNC-to-banana plug adapter available as a
recommended accessory (see Replaceable Parts on page 13).

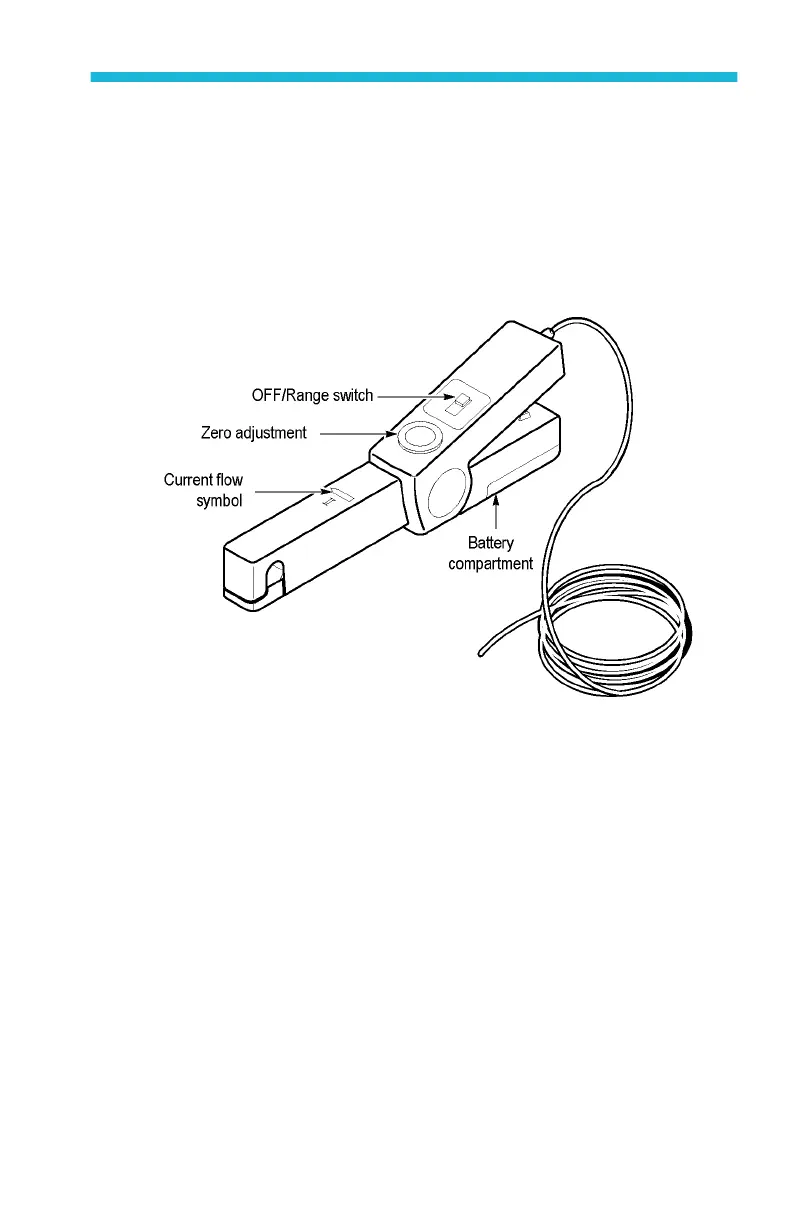

Figure 1: A622 AC/DC Current Probe
The following table highlights the controls and indicators on the A622
current probe.
A622 Instructions 1

Tektronix A622 Specifications

General

Brand	Tektronix
Model	A622
Category	Measuring Instruments
Language	English
