Tektronix A622 User Manual

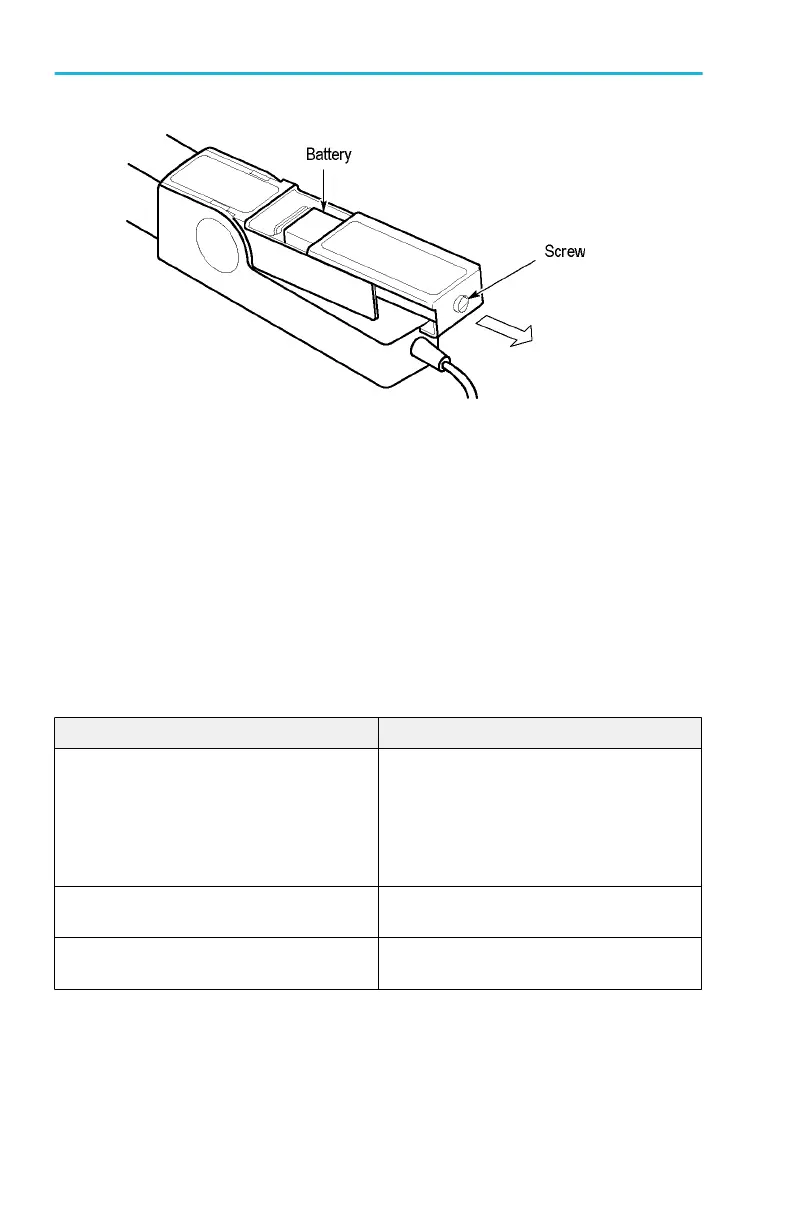

Figure 5: A622 battery compartment
Specifications
These characteristics apply to an A622 AC/DC Current Probe installed
on a Tektronix TDS 220 oscilloscope. The oscilloscope must be
warmed up for at least 20 minutes and be in an environment within the
specified limits in Table 5: Environmental Characteristics on
page 10.
Table 2: Electrical Characteristics
Current Ranges 10/100 mV/A
DC Accuracy, typical ±3% ± 50 mA at 100 mV/A (50 mA to 10 A peak
range)
±4% ± 50 mA at 10 mV/A (500 mA to 40 A peak
range)
±15% max at 100 mV/A (40 A peak to
100 A peak range)
Gain versus frequency, typical Figure 6: Gain versus frequency at 1 A peak,
typical on page 10
Maximum Working Current Table 3: Voltage and current ratings on
page 9
Maintenance
8 A622 Instructions

Tektronix A622 Specifications

General

Brand	Tektronix
Model	A622
Category	Measuring Instruments
Language	English
