Getting Acquain
ted with the Oscilloscope
24. Vertical Scale. Turn to adjust the
vertical scale factor of the corresponding
waveform (vol
ts/division).

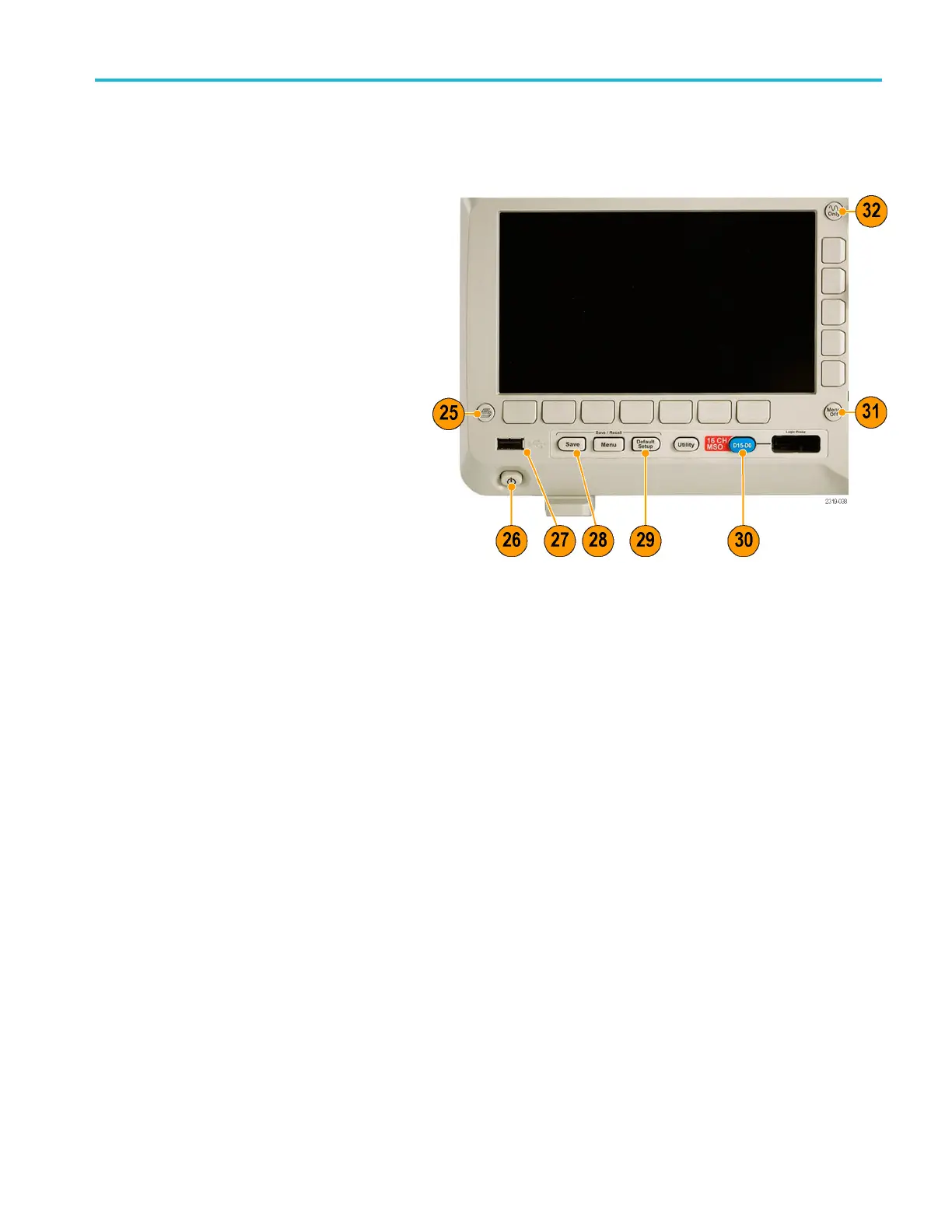

25. Print. Push to print to a PictBridge
printer.
26. Power switc
h. Push to power on or off
the oscilloscope.
27. USB 2.0 Host port. Insert a USB
peripheral to the oscilloscope, such as a
keyboard o
raflash drive.
28. Save. Pus
h to perform an immediate
save operation. The save operation uses
the current save parameters, as defi ned
in the Sav
e / Recall menu.
29. Default Setup. Push to perform an
immediate restore of the oscilloscope to
the default settings.
30. D15 - D0. Push to display or remove the
digital channels from the display, and to
access the digital channel setup menu
(MSO2000B series only).
31. Menu Off. Push to clear a d isplayed
menu from the screen.
32. Waveform Only. Push to remove menu
and readout information from the screen
so the oscilloscope only displays the
waveform or bus. Push a second time
to recall the previous menu and readout
information.
MSO2000B and DPO2000B Series Oscilloscopes User Manual 33
