Installation
Signal Path Compensation
Signal Path Compensation (SPC) corrects for DC inaccuracies caused by temperature variations and/or long-term drift.
You should run the SPC whenever the ambient temperature has changed by more than 10 °C or once a week if you
use vertical settings of 5 mV per division or less. Failure to do so may result in the oscilloscope not meeting warranted
performance levels at those volts per division settings.

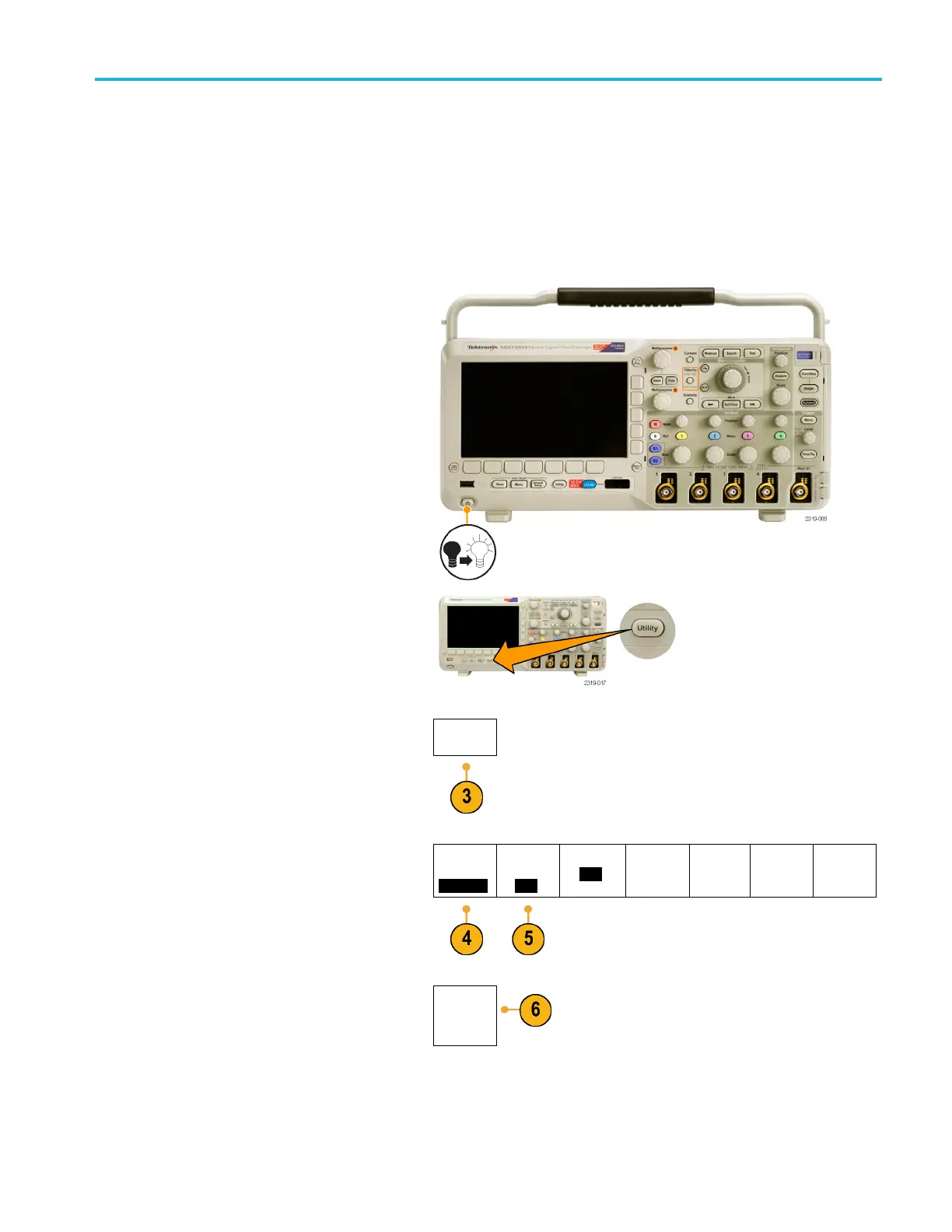

To compensate the signal path:
1. Warm up the oscilloscope for at least
20 minutes. Remove all input signals
(probes and cables) from channel inputs.
Input signals with AC components adversely
affect SPC.
2. Push Utility.
3. Push Utility Page.
Utility
Page
4. Turn multipurpose knob a and select
Calibration.
Utility
Page
Calibration
Signal
Path
Pass
Factory
Pass
5. Push Signal Path from the lower-bezel
menu.
6. Push OK Compensate Signal Paths from
the resulting side-bezel menu.
OK Com-
pensate
Signal
Paths
MSO2000B and DPO2000B Series Oscilloscopes User Manual 17
To Next Page
