Acquire the Signal
Push Bit Rate, and turn multipurpose knob a to
select the appropriate bit rate.
Bit Rate
9600 bps
Data Bits
7|
8
Parity
None
Odd
Even
RS-232 decoding displays a stream of bytes.
You can organize th e strea m into packe ts with
an end-of-packet characte r.
Packets
On |
Off
Turn multipurpose knob a to select an
end-of-packet cha racter.
End of
Packet
0A
(Linefeed)

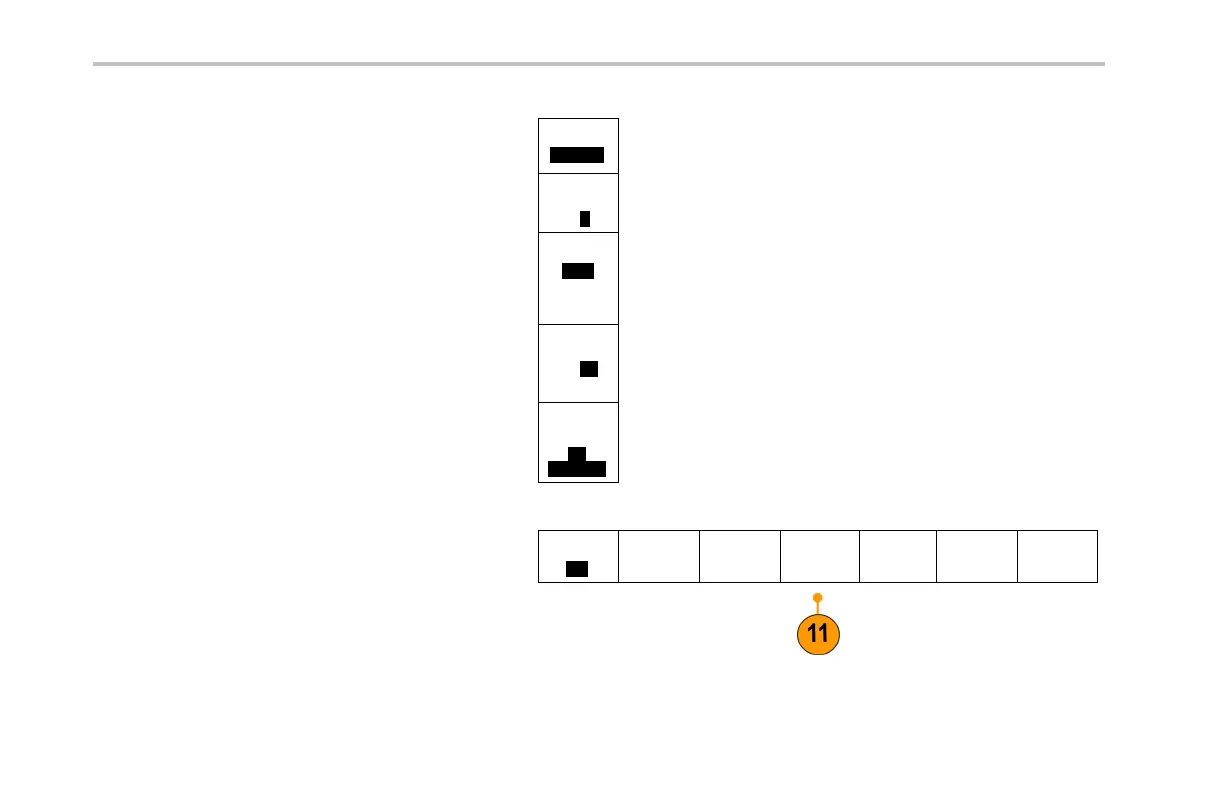

9. If you selected LIN above, push Configure.
Bus
LIN
Define
Inputs
Thresholds
Configure
B1 Label
LIN
Bus Display Event Table
Use the side-bezel menu to configure the bus.
100 DPO3000 Series Oscilloscopes User Ma nual
