Analyze Waveform Data

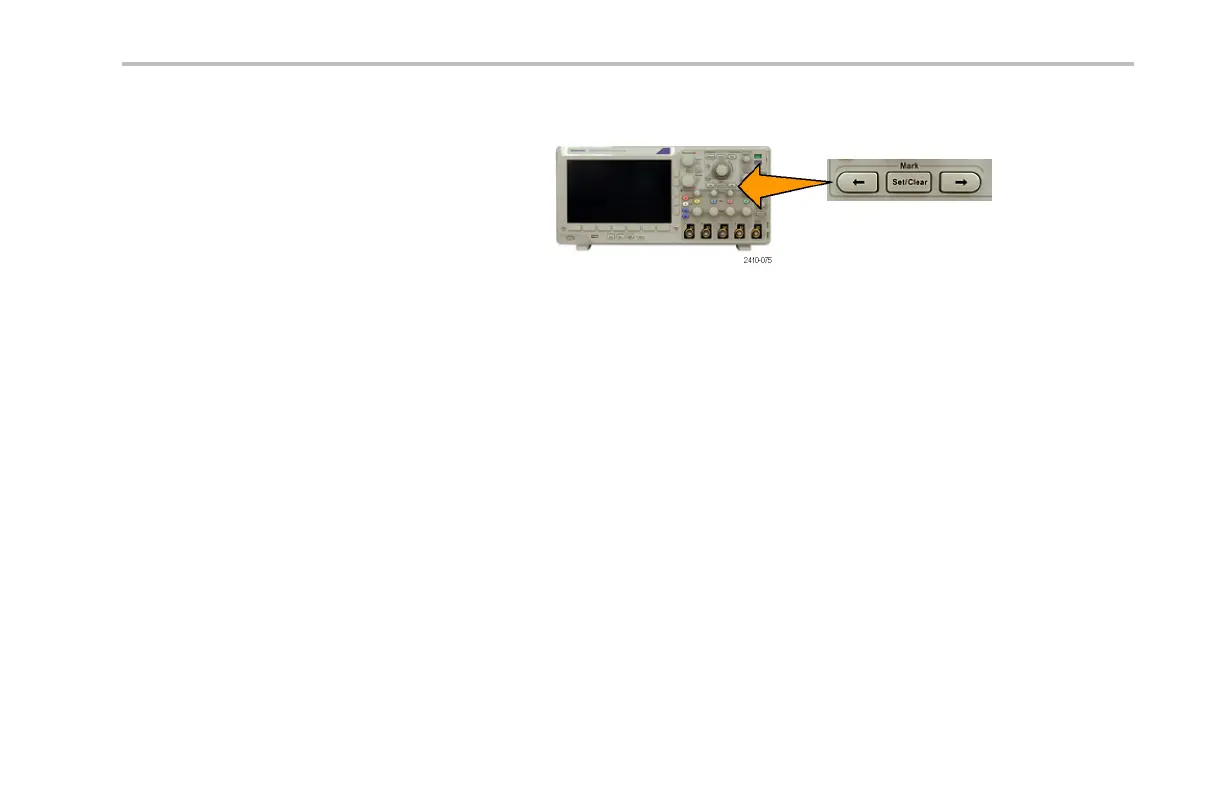

To manually set and clear (delete) marks:
1. Move (the zoom box) to the area on the
waveform where you want to set (or clear)
a search mark by turning the pan (outer)
knob.
Push the next ( →)orprevious(←)arrow
buttontojumptoanexistingmark.
2. Push Set/Clear.
If no search mark is at the screen center,
the oscilloscope will add one.
3. Investigate your waveform by moving from
search mark to search mark. Use the next
( →) or previous (←) arrow button to
jump from one marked location to another,
without adjusting any other controls.
DPO3000 Series Oscilloscopes User Manua l 195
