Get Acquainted with the Instrume nt

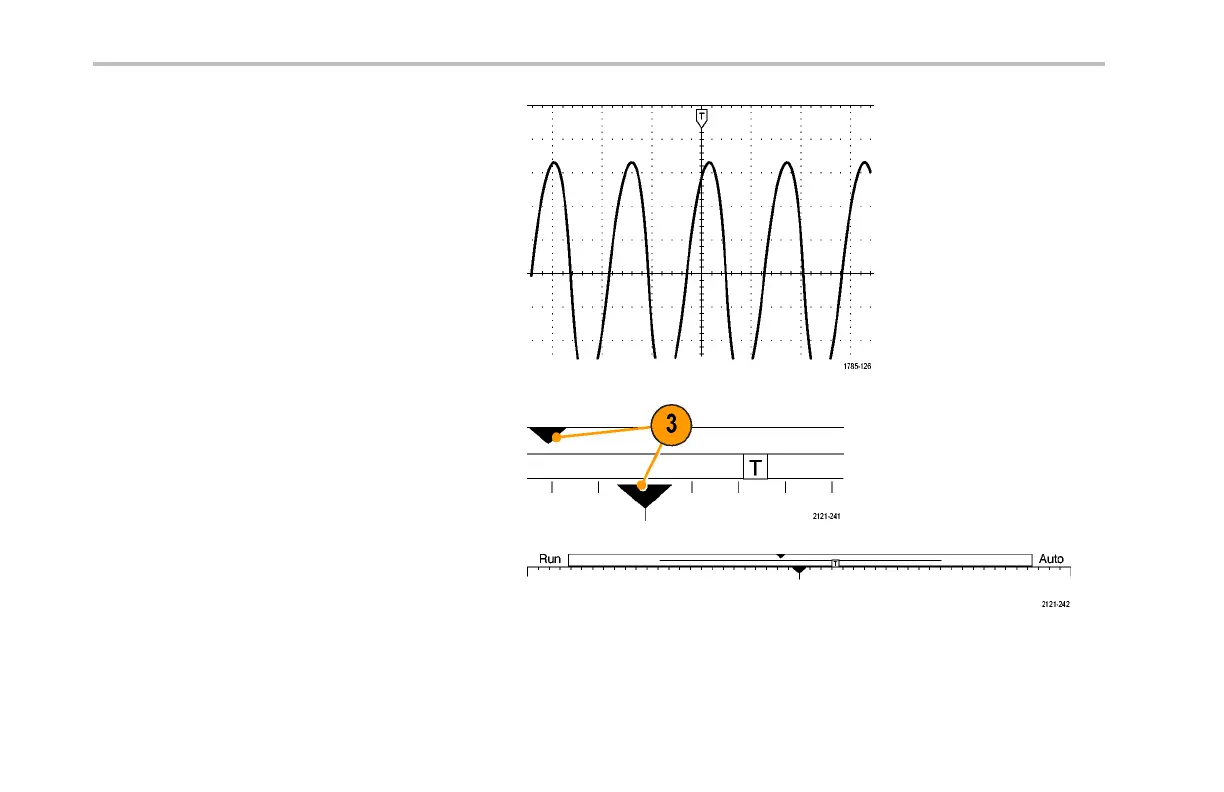

2. The trigge r position icon shows the trigger
position in the acquisition.
3. The expansion point icon (an orange
triangle) shows the point that the horizontal
scale expands and compresses around.
4. The waveform record view sho ws the
trigger location relative to the waveform
record. The line color corresponds to the
selected waveform color.
66 DPO3000 Series Oscilloscopes User Ma nual
