Tektronix DPO3000 Series User Manual

Get Acquainted with the Instrument
5. The trigger statu s readout shows trigger
status. Status con ditions a re:
Trig’d: Triggered
Auto: A cquiring untriggered data
PrTrig: Acquiring pretrigger data
Trig?: Waiting for trigger

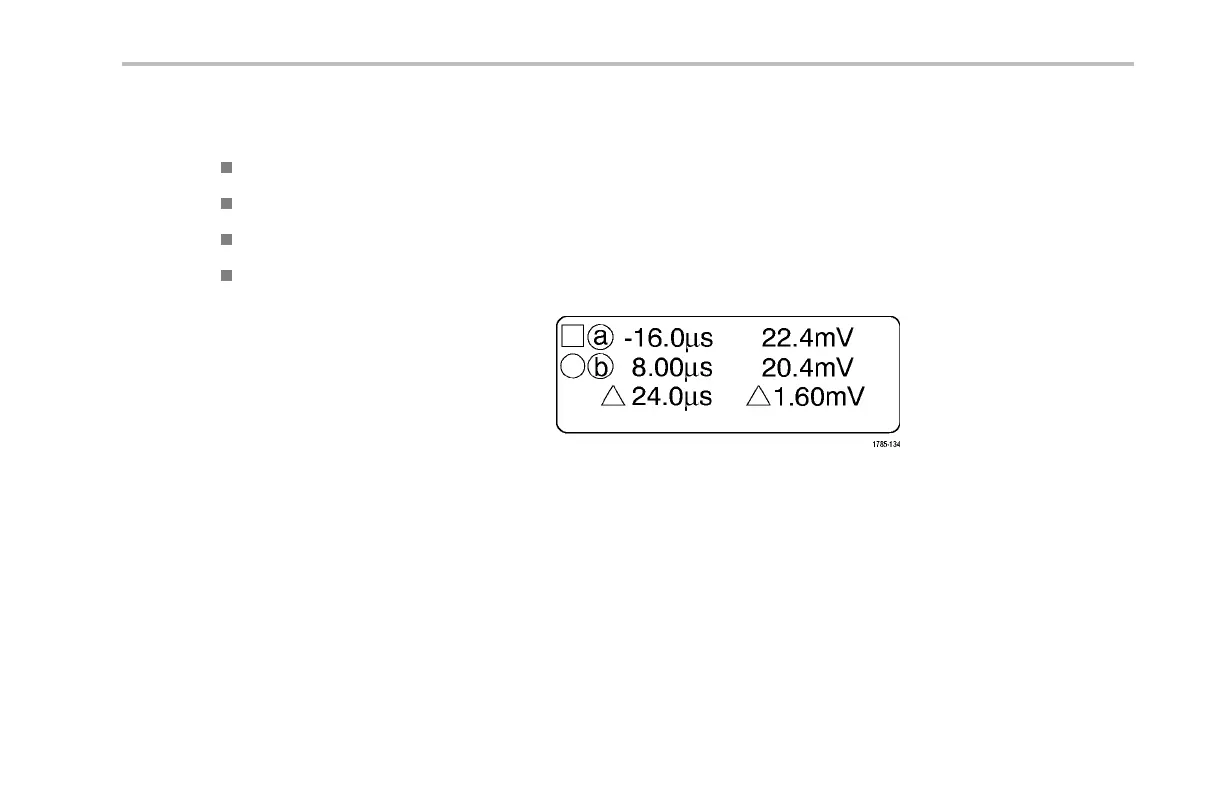

6. The cursor readout sh ows time, amp litude,
and delta (Δ) values for each cursor.
For FFT measurements, it shows frequency
and magnitude.
For serial buses, the readout shows the
decoded values.
DPO3000 Series Oscilloscopes User Manua l 67
