Get Acquainted with the Instrume nt

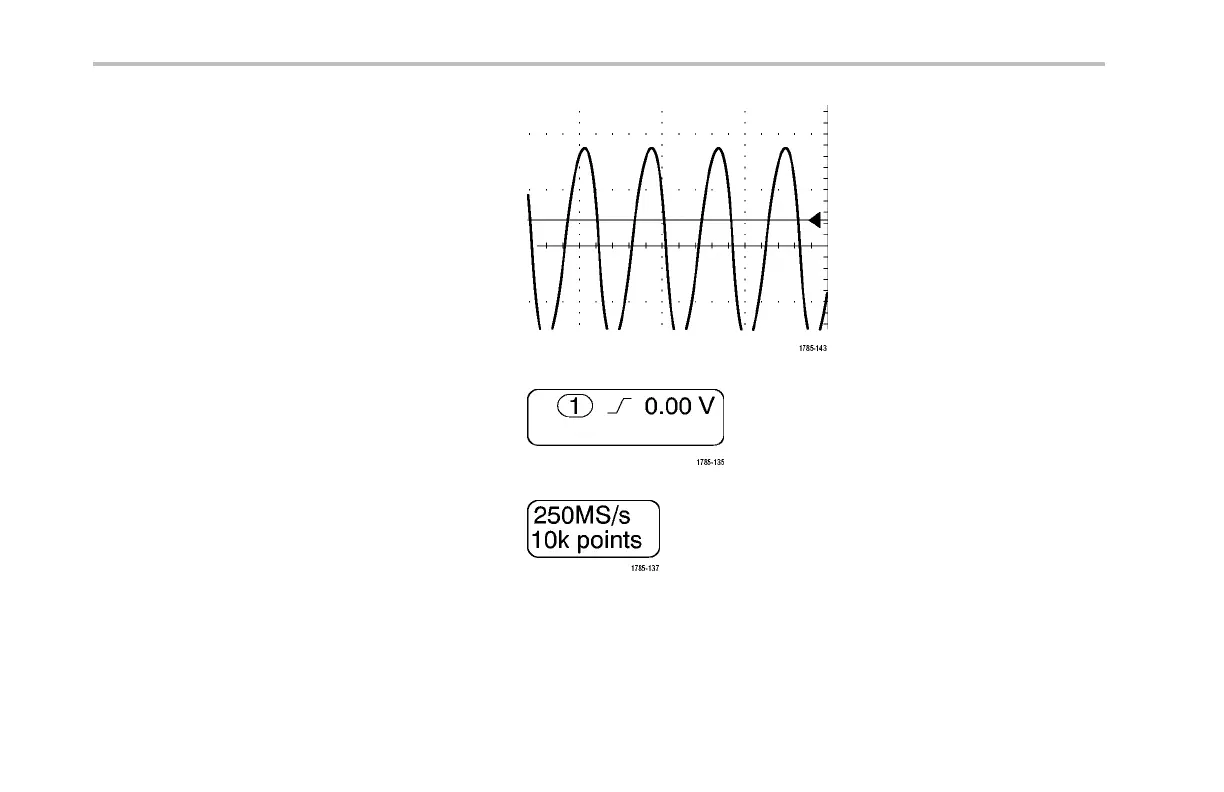

7. Thetriggerleveliconshowsthetrigger
level on the waveform. The icon color
corresponds to the trigger source color.
8. The trigger readout shows the trigger
source, slope, and level. The trigger
readouts for other trigger types show other
parameters.
9. The to p line of the record length/sampling
rate readout shows the sampling rate
(adjust with the Horizontal Scale knob).
The bottom line shows the record length
(adjust with the Acquire menu).
68 DPO3000 Series Oscilloscopes User Ma nual
