Get Acquainted with the Instrument

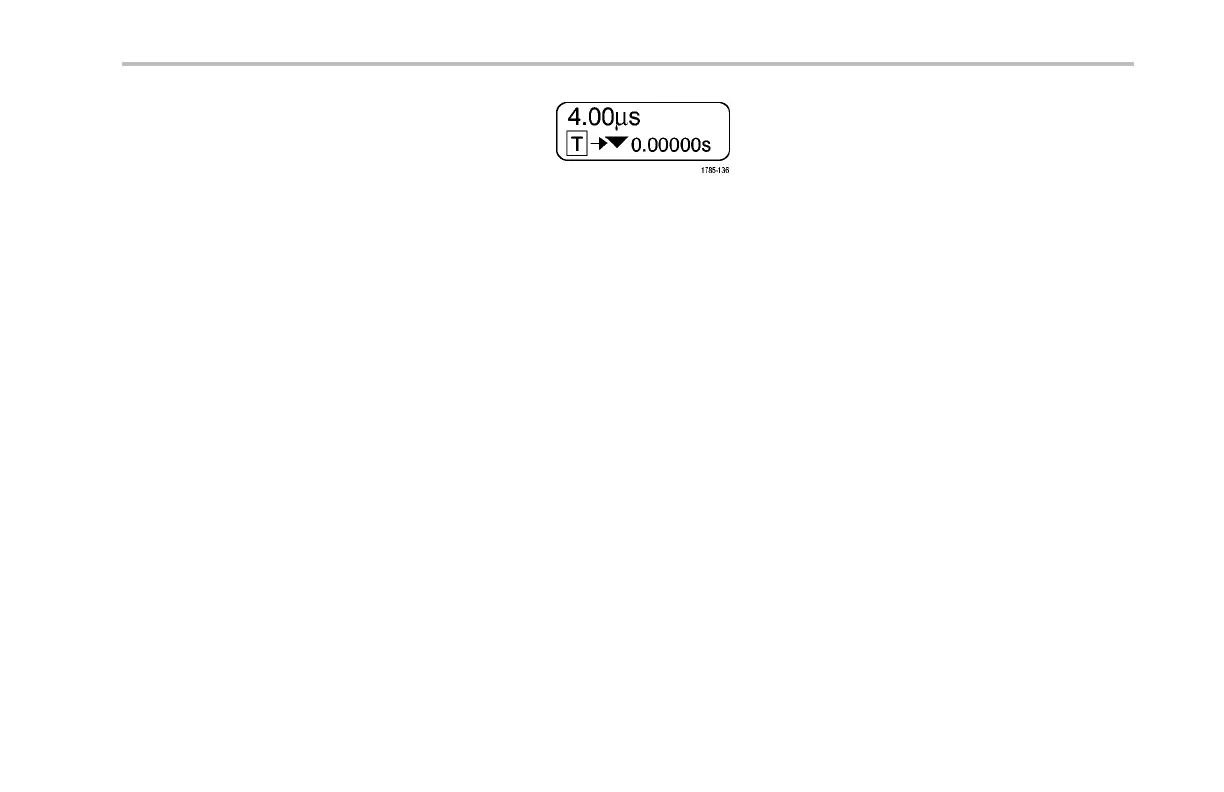

10. The horizontal position/scale readout
shows on the top line the horizontal scale
(adjust with the Horizontal Scale knob).
With Delay Mode on, the bottom line
shows the time from the T symbol to
the expansion point icon (adjust with the
Horizontal Position knob).
Use horizontal position to insert add ed
delay between when the trigger occurs and
when you actually capture the data. Insert
a negative time to capture more pretrigger
information.
With Delay Mode off, the bottom line
shows the time location of the trigger within
the acquisition, as a percentage.
DPO3000 Series Oscilloscopes User Manua l 69
