Trigger after time (Horizontal delay off). From the Trig menu, select A - B Trigger Sequence.
Overview. Use the controls in this window to define the parameters for the A ->B Sequence trigger with Horizontal Delay off.
NOTE. The A->B Sequence trigger is not available with MultiScope Triggers.
For information on the controls, click the buttons.
■
Trigger Level
■
Trigger Delay
■
Horizontal Position
■
Trigger Reset
■
Counter Measurements

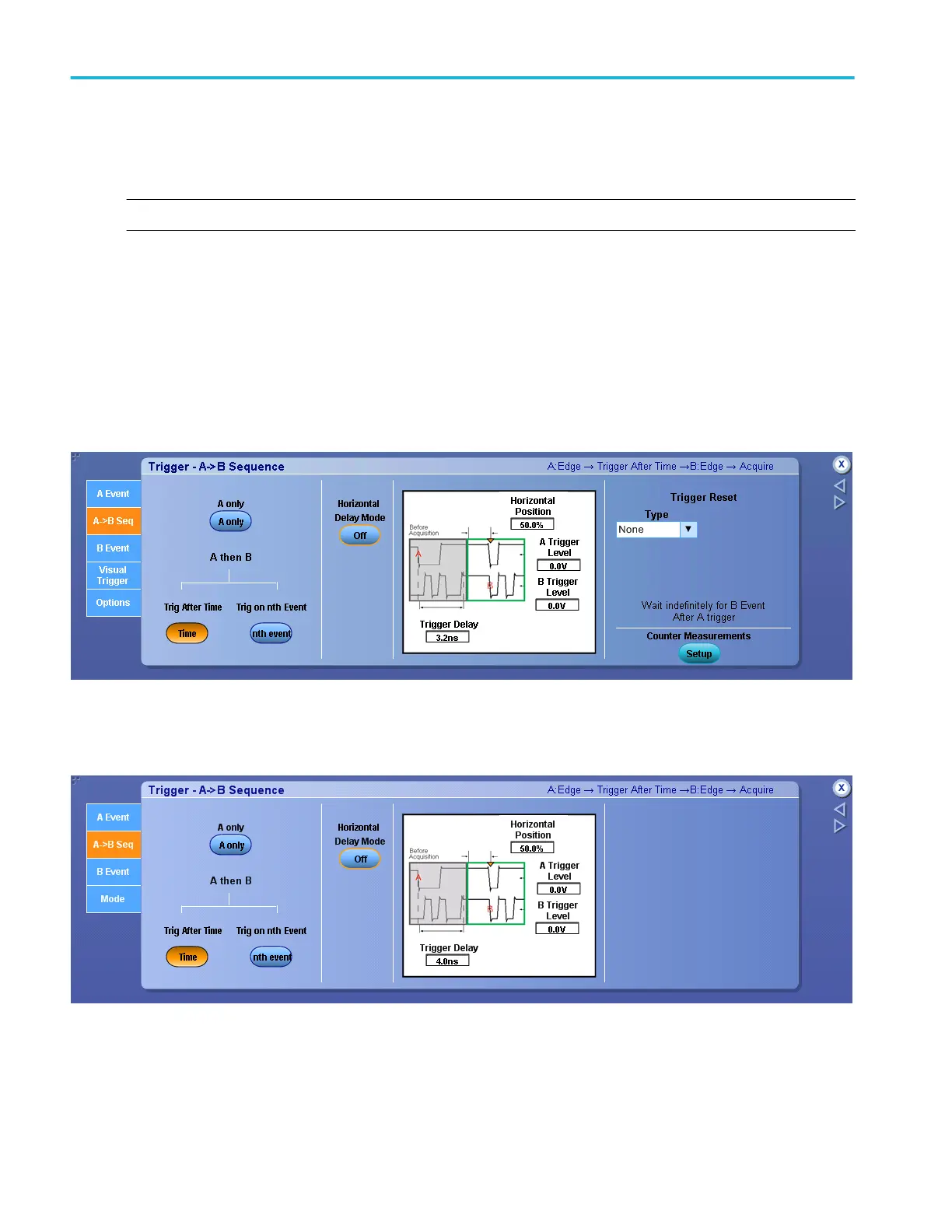

The following screen appears on MSO/DPO5000B Series instruments:
To use.
1. Set up the A Event and B Events from their individual tabs.
2. Select the A–>B Seq tab; then click Trig After Time.
3. Click to set the Horizontal Delay Mode button to Off.
Trigger setups
