9: Measuring I-V characteristics of solar cells Model 2450 SourceMeter® Instrument
User's Manual
9-4 2450-900-01 Rev. E / August 2019
The figure below shows the front-panel connections. You can make these connections with four
insulated banana cables, such as two sets of the Keithley Instruments Model 8608 High-Performance
Clip Lead Set.

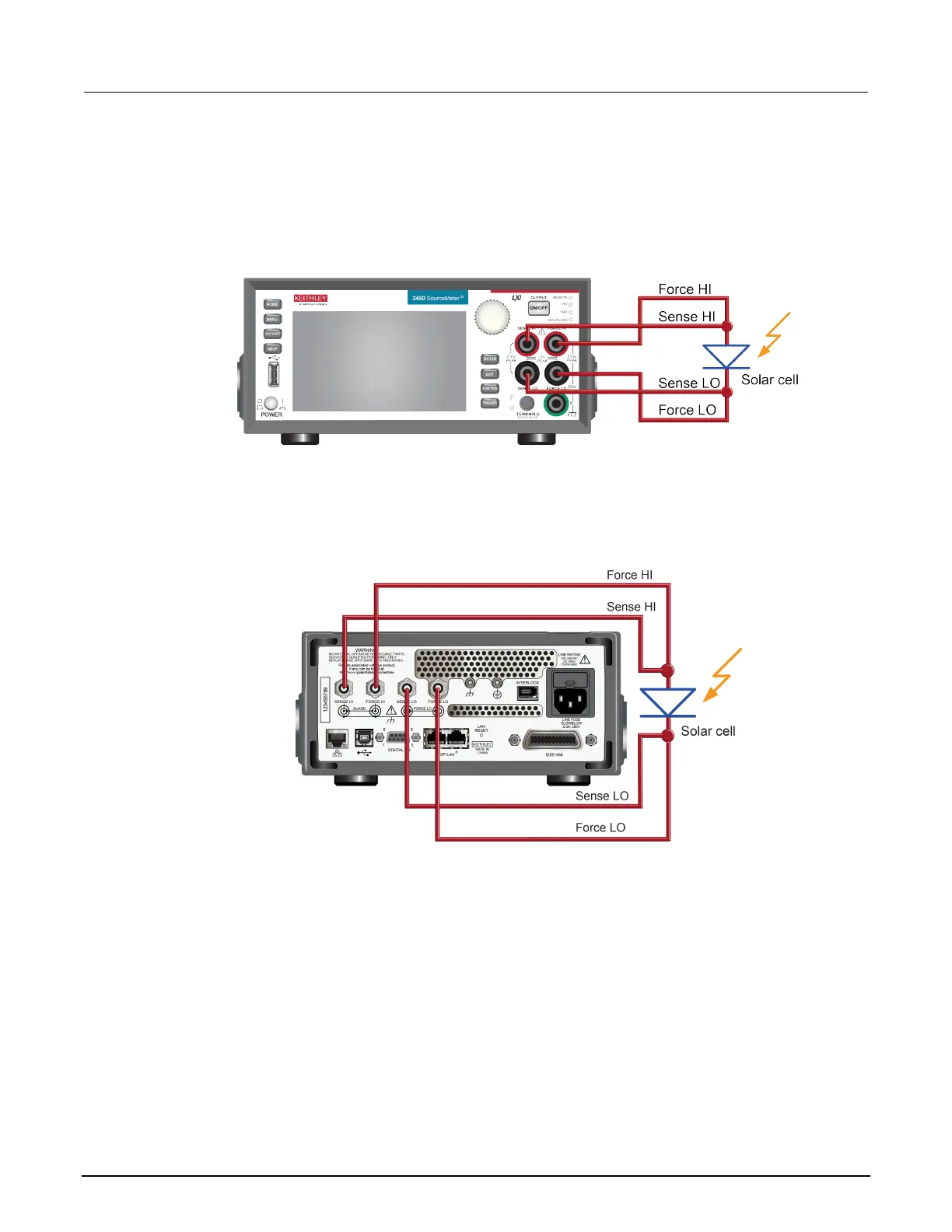

Figure 50: Model 2450 4-wire connections to the front panel
The figure below shows the rear-panel connections. You can make these connections with four
triaxial cables.
Figure 51: Model 2450 4-wire connections to the rear panel
