Analyzing Power

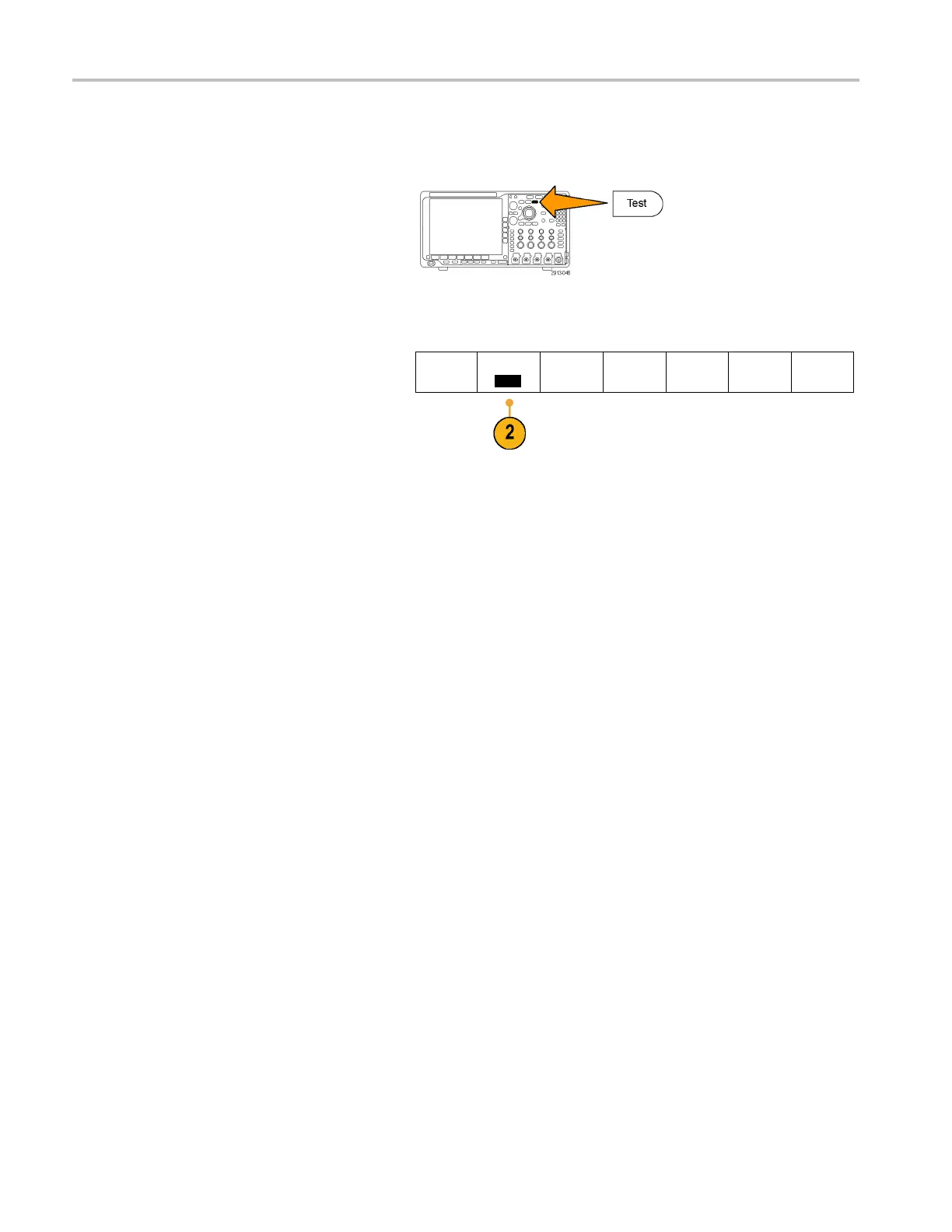

Acquire, measure, and analyze power signals w ith the DPO4PWR Power A nalysis Module. To use this application:
1. Push Test.
2. Turn multipurpose knob a to select Power
Analysis.
3. Push Analysis.
Applica-
tion
Analysis
None
4. Use the side-bezel buttons to select the
desired analysis function.
Choose among power quality, switching
loss, harmonics, ripple, modulation, and
safe operating area, and deskew. See the
DPO3PWR and DPO4PWR Power Analysis
Modules User Manual for more information.
160 MDO4000 Series Oscilloscopes User Manual
