Acquire the Sign
al
2. If you change your mind, push Undo
Default Setup to undo the last default
setup.
Undo
Default
Setup

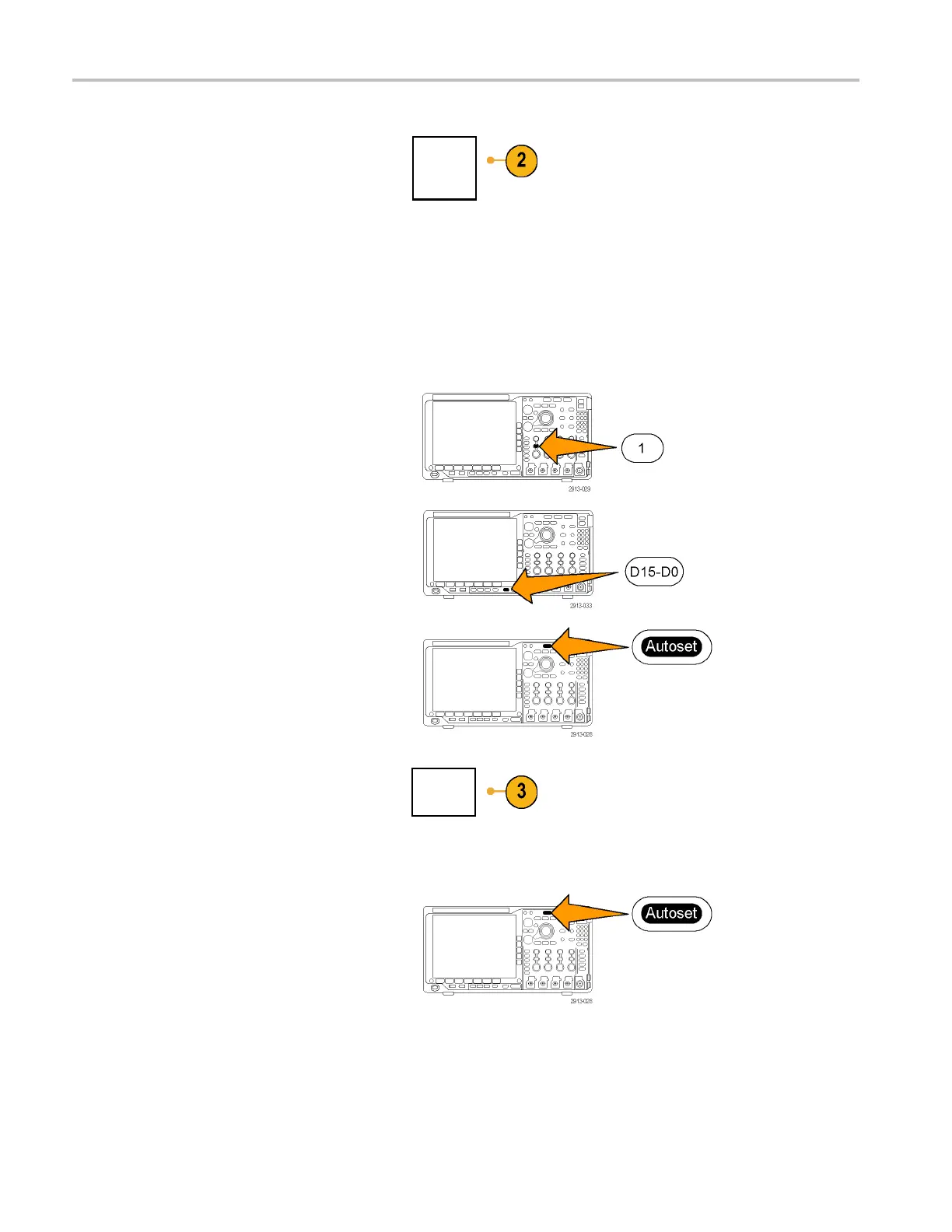

Using Autose
t
Autoset adjusts the instrument (acquisition, horizontal, trigger, and vertical controls) such that it displays four or five waveform
cycles for analog channels with the trigger near the midlevel, and ten cycles for digital channels.
Autoset works with both the analog and digital channels.
1. To autoset an analog channel, connect the
analog probe, and then select the input
channel. (See page 50, Setting Up Analog
Channels.)
To autoset a digital channel, connect
the logic probe and select the input
channel. (See page 73, Setting Up Digital
Channels.)
2. Push Autoset to execute an Autoset.
3. If des
ired, push Undo Autoset to undo
the last Autoset.
Undo
Autos
et
You c an also disable the Autoset function. To disable or enable the Autoset function:
1. Push
and hold Autoset.
54 MDO4000 Series Oscilloscopes User Manual
