Tektronix MDO4104-3 User Manual

Get Acquainted w
ith the Instrument

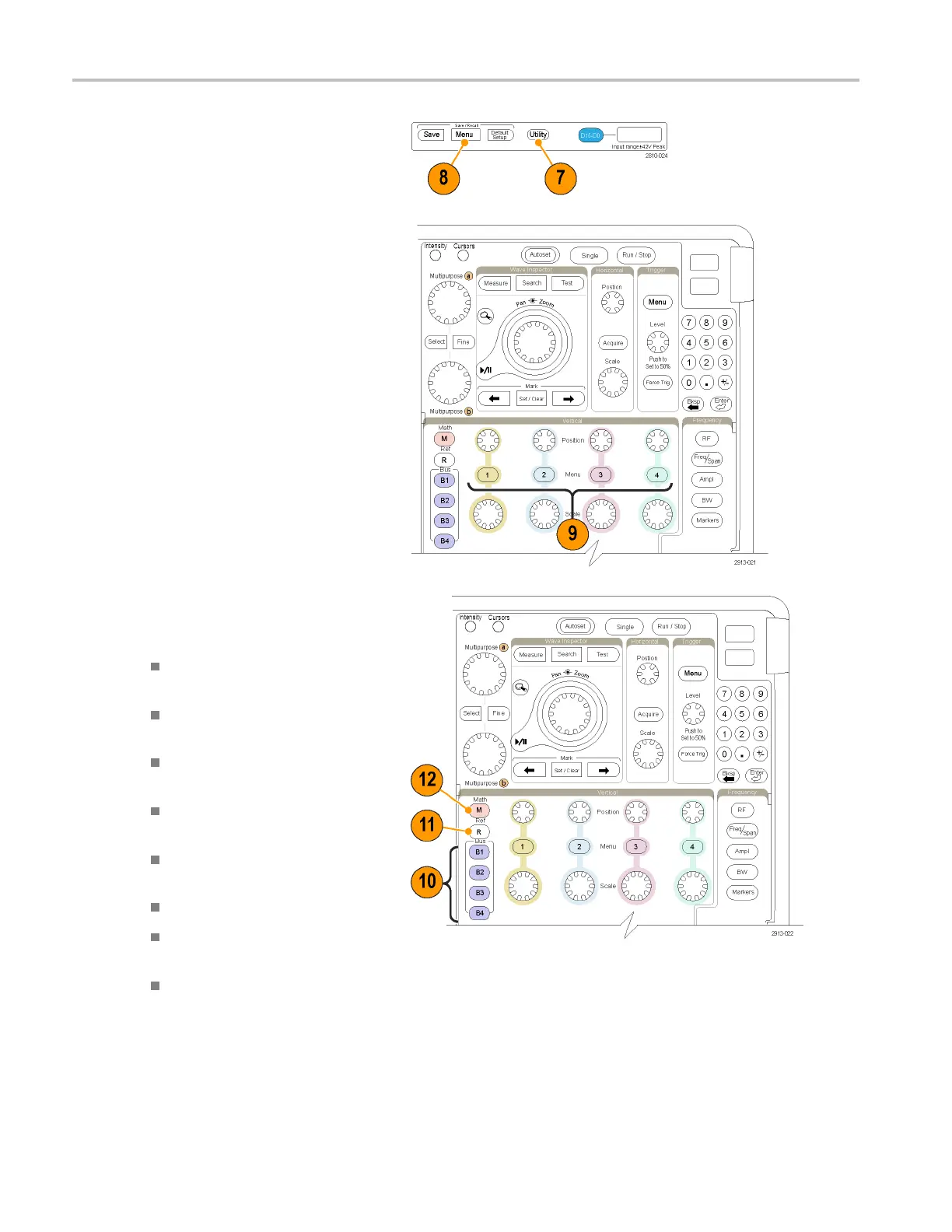

7. Utility. Push t
o activate the system utility
functions, such a s selecting a language
or setting the date/time.
8. Save / Recall
Menu. Push to save and
recall setups, waveforms, and screen
images to internal memory, a USB flash
drive, or a m
ounted network drive.
9. Channel 1,2
,3,or4Menu. Push
to set vertical parameters for input
waveforms and to display or remove
the corres
ponding waveform from the
display.
10. B1, B2, B3,orB4. Push to define and
display a bus if you have the appropriate
module application keys.
DPO4AERO supports MIL-STD-1553
buses.
DPO4AUTO supports CAN and LIN
buses.
DPO4AUTOMAX supports CAN, LIN,
and FlexRay buses.
DPO4EMBD supports I
2
C and SPI
buses.
DPO4ENET supports Ethernet
buses.
DPO4USB supports USB 2.0 buses.
DPO4COMP supports RS-232,
RS-422, RS-485, and UART buses.
DPO4AUDIO supports I
2
S, Left
Justified (LJ), Right Justified (RJ),
and TDM buses.
36 MDO4000 Series Oscilloscopes User Manual
