Tektronix MSO2024 User Manual

Display Waveform Data

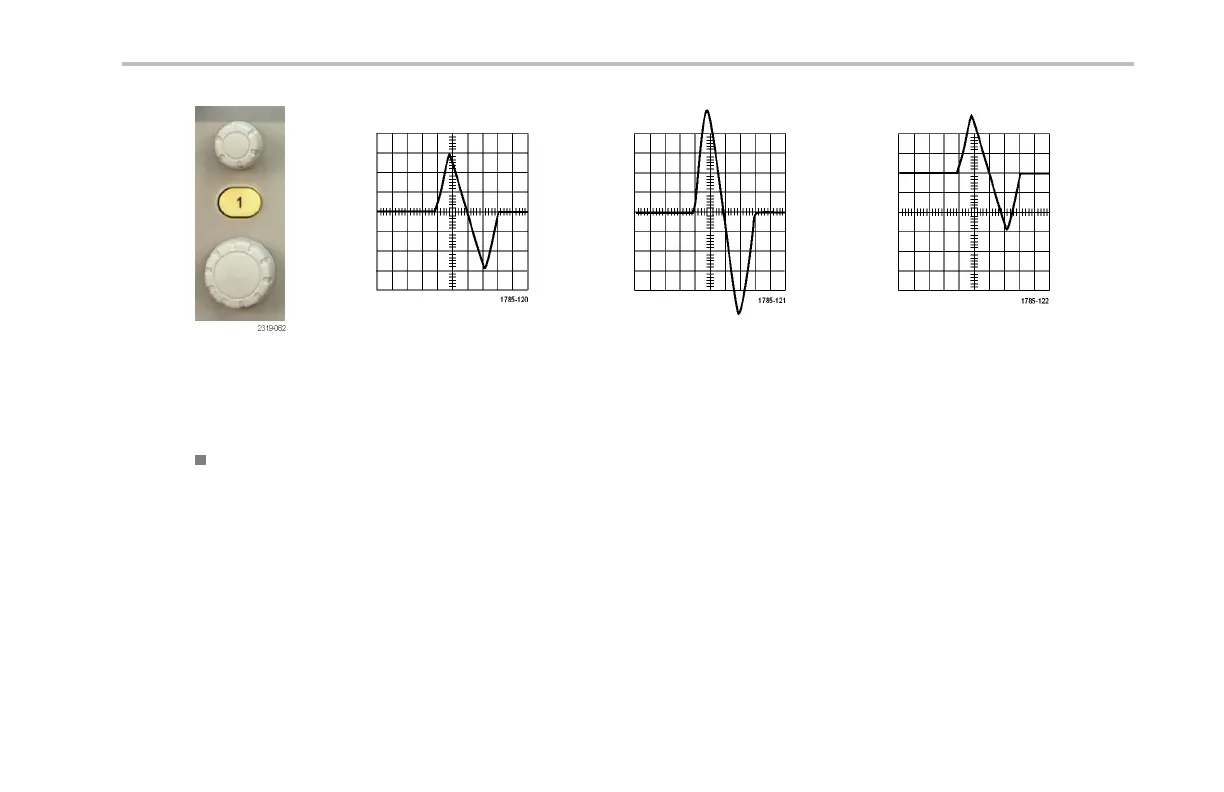

Original waveform Scaled vertically Positioned vertically
Quick Tips
Preview. If you change the Position or Scale controls whe n the acquisition is stopped or when it is waiting for the next trigger,
the oscilloscope rescales and repositions the releva nt waveforms in response to the new control settings. It s imulates what you
will see when you n ext push the RUN button. The o scilloscope uses the new settings for the n ext acquisition.
You may see a clipped waveform if the original acquisition went off the screen.
The math waveform, cursors, and automatic measurements remain active and valid when using preview.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 157
