Getting Acquainted with the Oscilloscope
12. ← Prev. Push to jump to the previous
waveform mark.
13. Set/Cle ar Mark. Push to establish or
delete a wavefo rm mark.
14. → Next. Pushtojumptothenext
waveform mark.

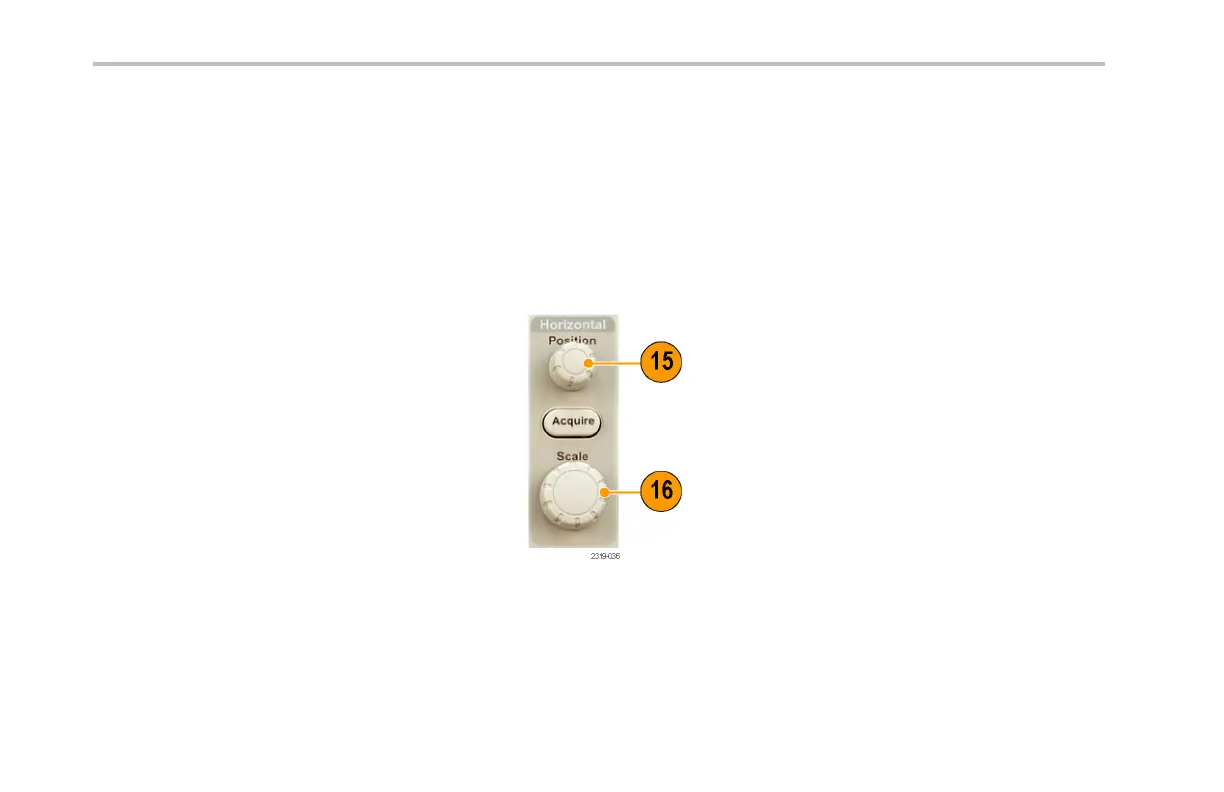

15. Ho rizontal Position. Turn to adjust
the trigger point location relative to the
acquired waveforms. Push Fine to make
smaller adjustments.
16. Ho rizon tal Scale. Turn to adjust the
horizontal scale (time/division).
58 DPO2000 and MSO2000 Series Oscilloscopes User Manual
