Getting Acquainted with the Oscilloscope

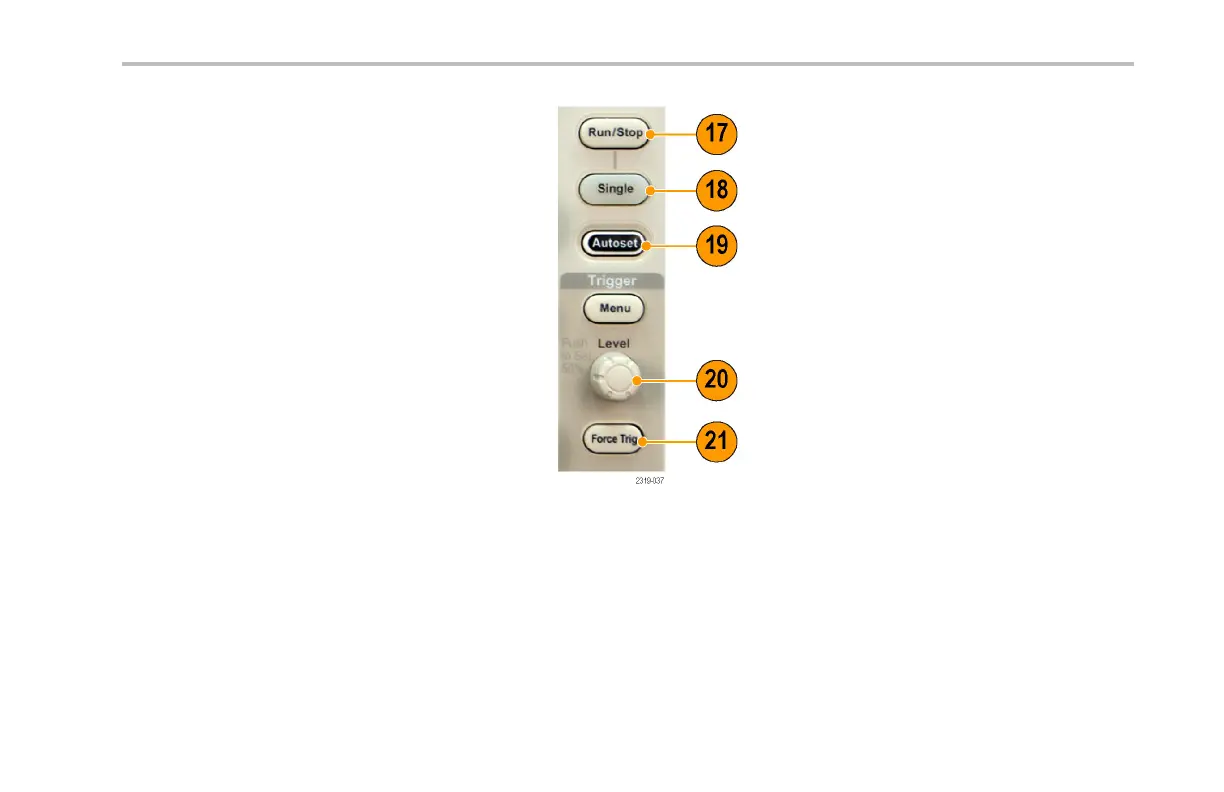

17. Run/Stop. Push to start or stop
acquisitions.
18. Single. Push to make a single acquisition.
19. Autoset. Push to automatically set the
vertical, horizontal, and trigg er controls for
a usable, stable display.
20. Trigger Level. Turn to adjust the trigger
level.
Push Le vel to Set 50%. P ush the Trigger
level kno b to set the trigger level to the
midpoint of the waveform.
21. Force Trig. P ush to force an immediate
trigger event.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 59
