9. FlexChannel probe connectors:

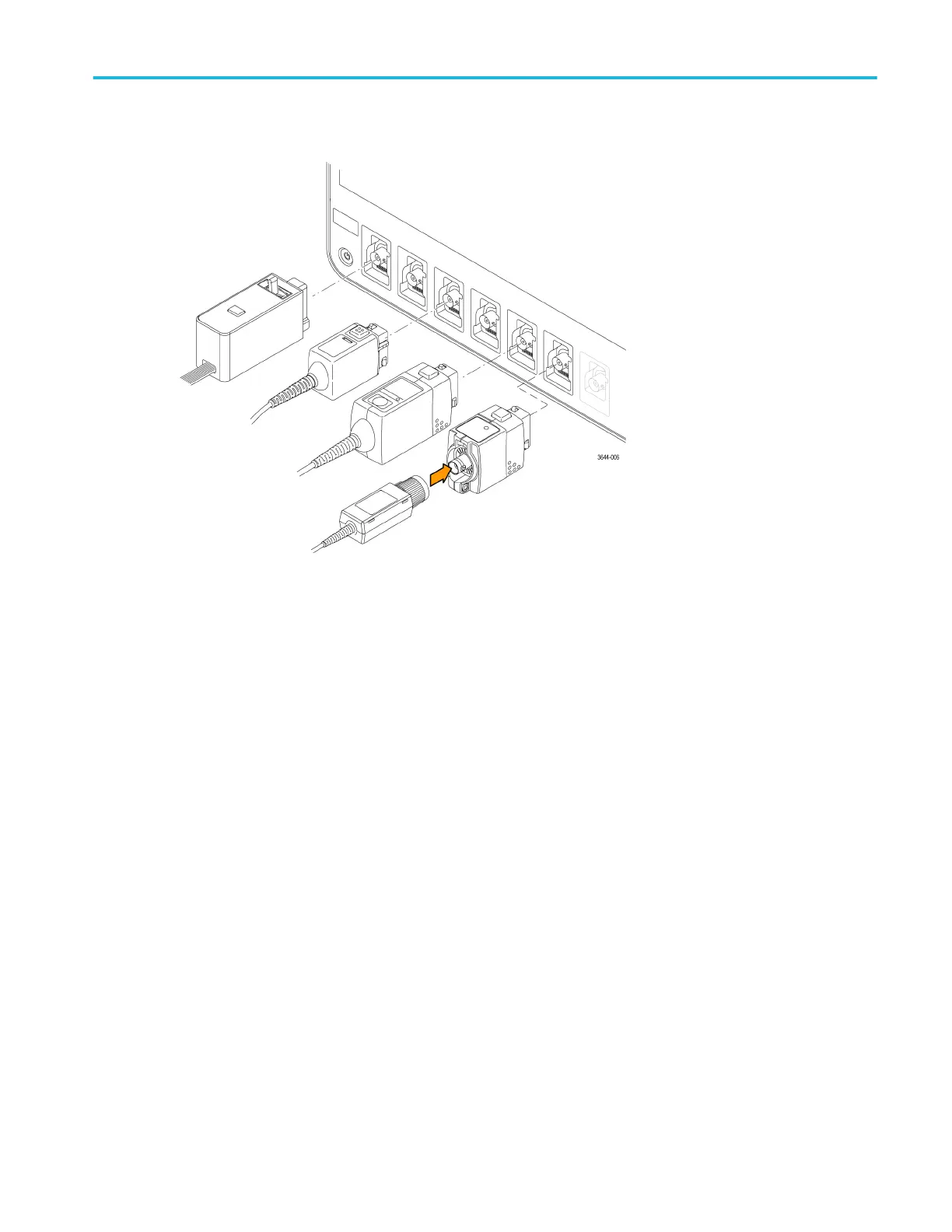

Figure 4: 4 Series MSO
■
FlexChannel connectors support all TekVPI+ and TekVPI measurement probes, BNC passive probes, the TPL058
FlexChannel Logic Probe, and BNC cables. You connect most probes simply by pushing them into the connector until
the probe seats with a click. See Connecting Probes on page 5.
10. Aux In auxiliary trigger input connector (4 Series, 6 Series only):
A connector to which you can connect an external trigger input signal. Use the Aux In trigger signal with the Edge trigger
mode.
Getting acquainted with your instrument
MSO44, MSO46 Installation and Safety Manual 13
