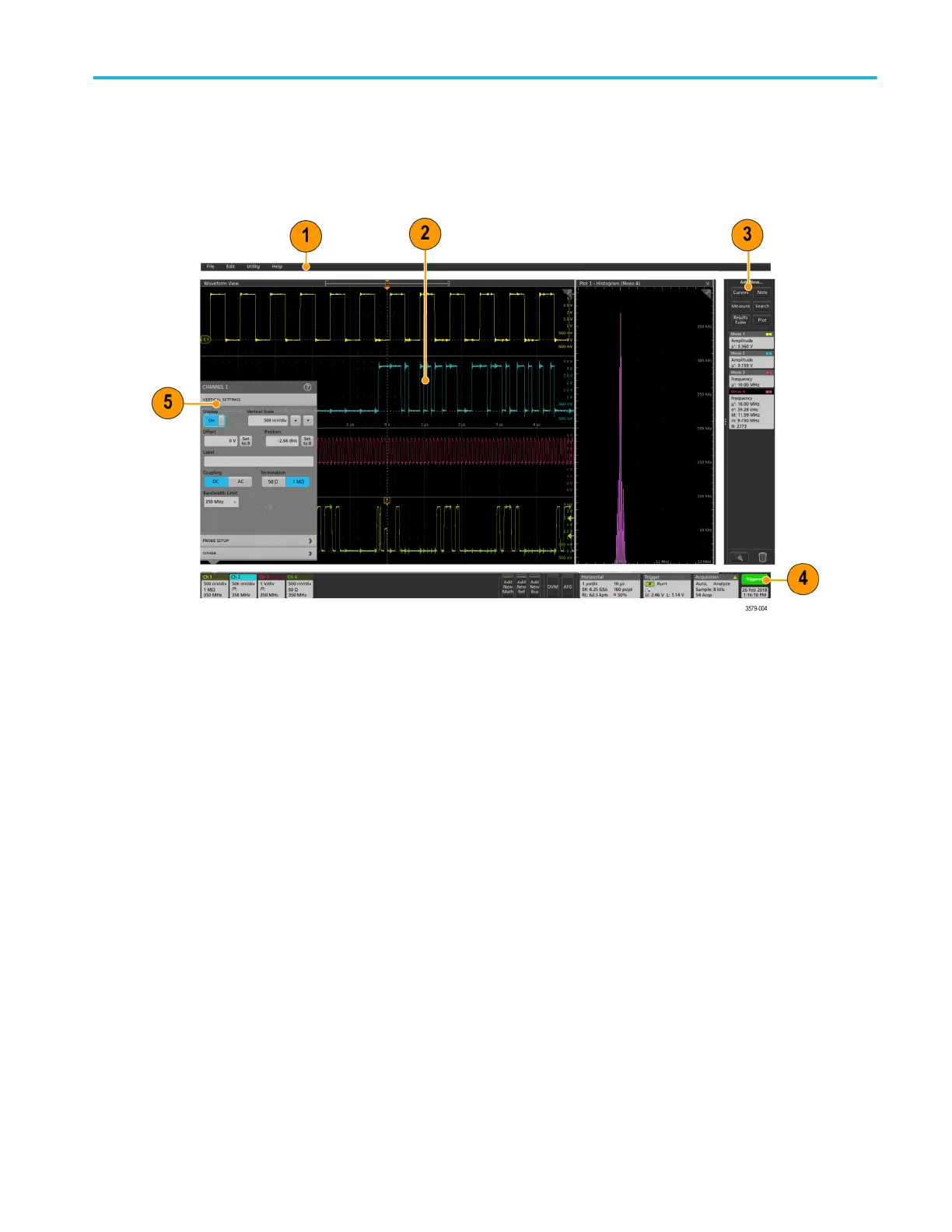

The user interface screen
The touch screen user interface contains waveforms and plots, measurement readouts, and touch-based controls to access all
oscilloscope functions.
1. The Menu bar provides menus for typical operations including:
■
Saving, loading, and accessing files
■
Undoing or redoing an action
■
Setting oscilloscope display and measurement preferences
■
Configuring network access
■
Running self tests
■
Erasing measurement and settings memory (TekSecure
™
)
■
Loading option licenses
■
Opening a Help viewer.
2. The Waveform View area displays analog, digital, math, reference, bus, and trend waveforms. The waveforms include
waveform handles (identifiers), individual vertical graticule scale labels, and trigger position and level(s) indicators. You can
set the Waveform View to stack each waveform vertically in separate graticules, called 'slices' (the default mode, as shown
in the previous image), or overlay all the waveforms on the screen (traditional waveform view). See The user interface
elements on page 16.
You can also add Histogram, Spectral, and Measurement Results views (plots) for individual measurements. These plot
views are separate view windows that you can move on the screen by dragging their title bar to a new position.
Getting acquainted with your instrument
MSO44, MSO46 Installation and Safety Manual 15
