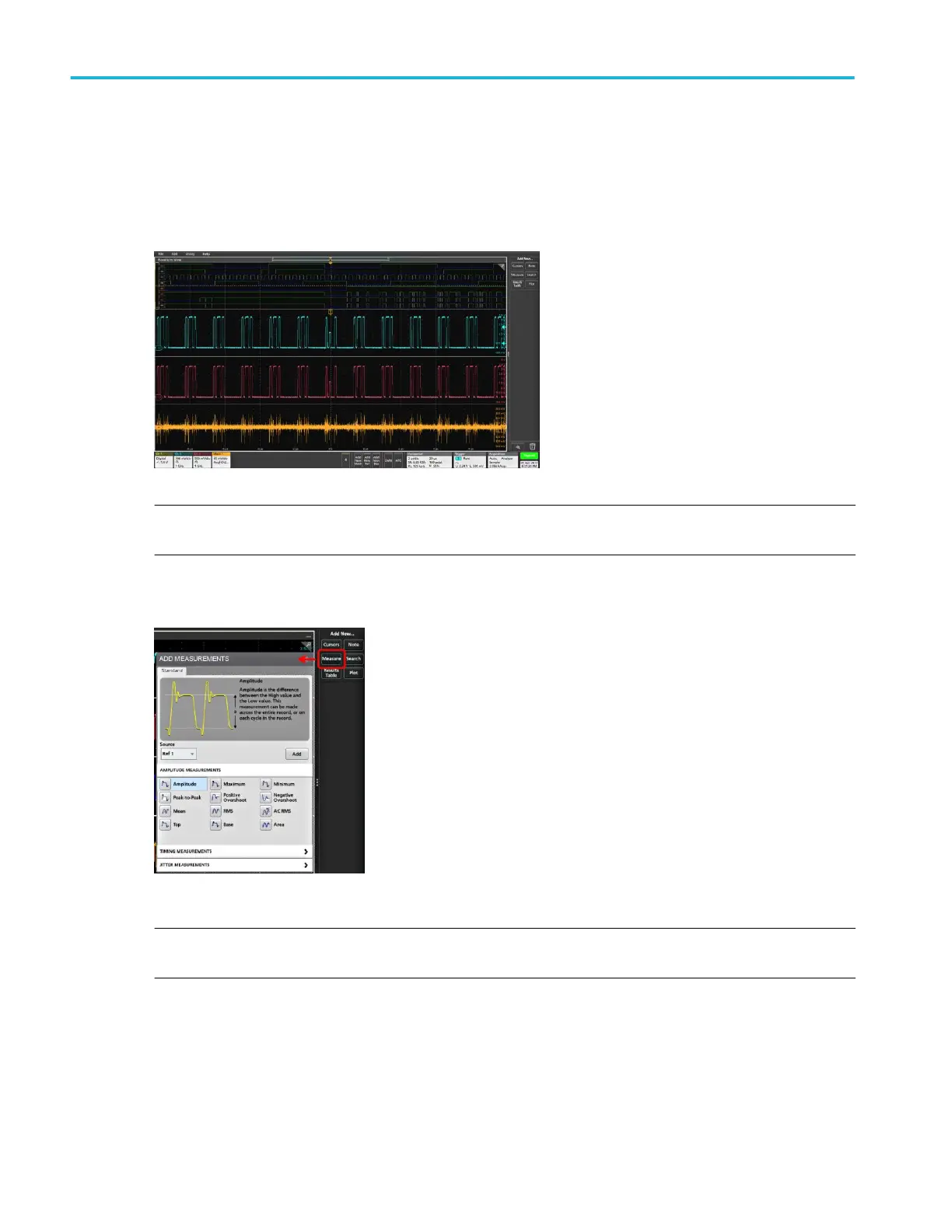

Add a measurement
Use this procedure to select and add measurements.
1. Acquire the channel(s) and/or waveform(s) on which you want to take measurements.
NOTE. Waveforms do not need to be displayed to be used for measurements, as long as the channel or waveform badge is
on the Settings bar and is acquiring the signal to measure.
2. Tap the Add New...Measure button to open the Add Measurements configuration menu.
NOTE. If the menu shows tabs other than Standard, then optional measurement types have been installed on the
instrument. Select a tab to show the measurements for that option.
3. Tap the Source field and select the measurement source. The list shows all available sources that are valid for the
measurement.
4. Select a measurement category panel, such as Amplitude Measurements or Timing Measurements, to display
measurements for those categories.
5. Select a measurement and tap Add to add the measurement to the Results bar. You can also double-tap a measurement
to add it to the Results bar.
Operating basics
42 MSO44, MSO46 Installation and Safety Manual
