11. The Waveform Handles on each waveform identify the source of that waveform (Cx for channels, Mx for Math waveforms,
Rx for Reference waveforms, Bx for bus waveforms). The waveform handles are at the zero-volt level of the waveform by
default. The currently selected waveform handle is a solid color; unselected waveform handles are outlined.
Double-tapping a waveform handle opens the configuration menu for that waveform.

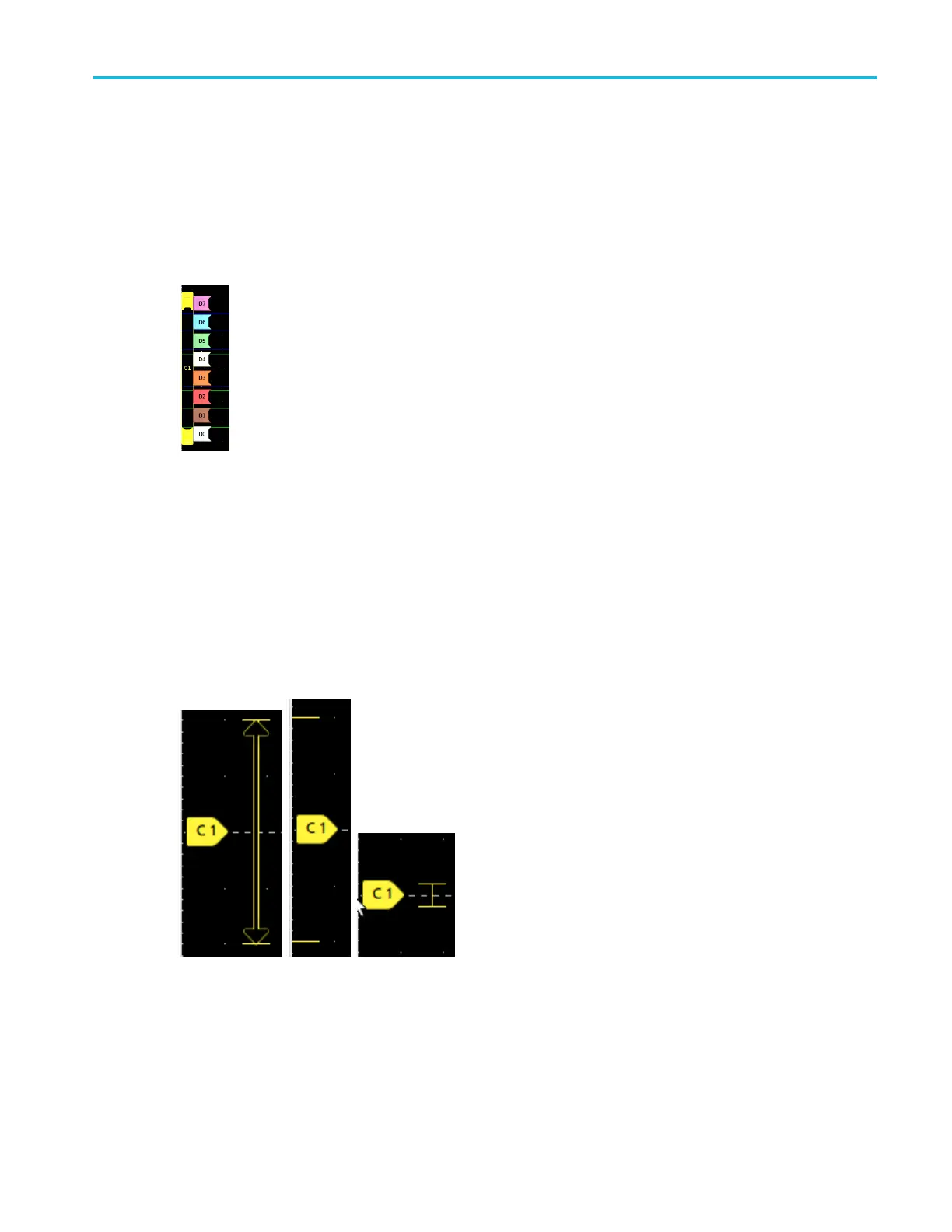

For digital channels, the waveform handle shows the channel number, each individual digital signal labeled D0–D7 and
displayed with a different color.
Double-tapping a digital waveform handle opens the digital channel configuration menu.
Dragging a digital signal handle over another handle swaps those two signals on the waveform.
12. The probe Dynamic Range Limit Markers are displayed just within the left-hand graticule edge, based at the channel vertical
trace handle position and extending up and down to the dynamic range limits of the probe. The markers are only displayed if
compatible probes are used. Signals must be within the probe dynamic range for the oscilloscope to correctly display and
measure the signals.
The markers are displayed, for about three seconds, after any Offset, Position, or Scale control change that leaves the
channel dynamic range limits within the acquisition window. After about three seconds the markers become short lines at
the left edge of the graticule. If the dynamic range is too small to display the arrows, the arrows are omitted. Examples of all
three marker versions are shown.
Getting acquainted with your instrument
MSO44, MSO46 Installation and Safety Manual 19
