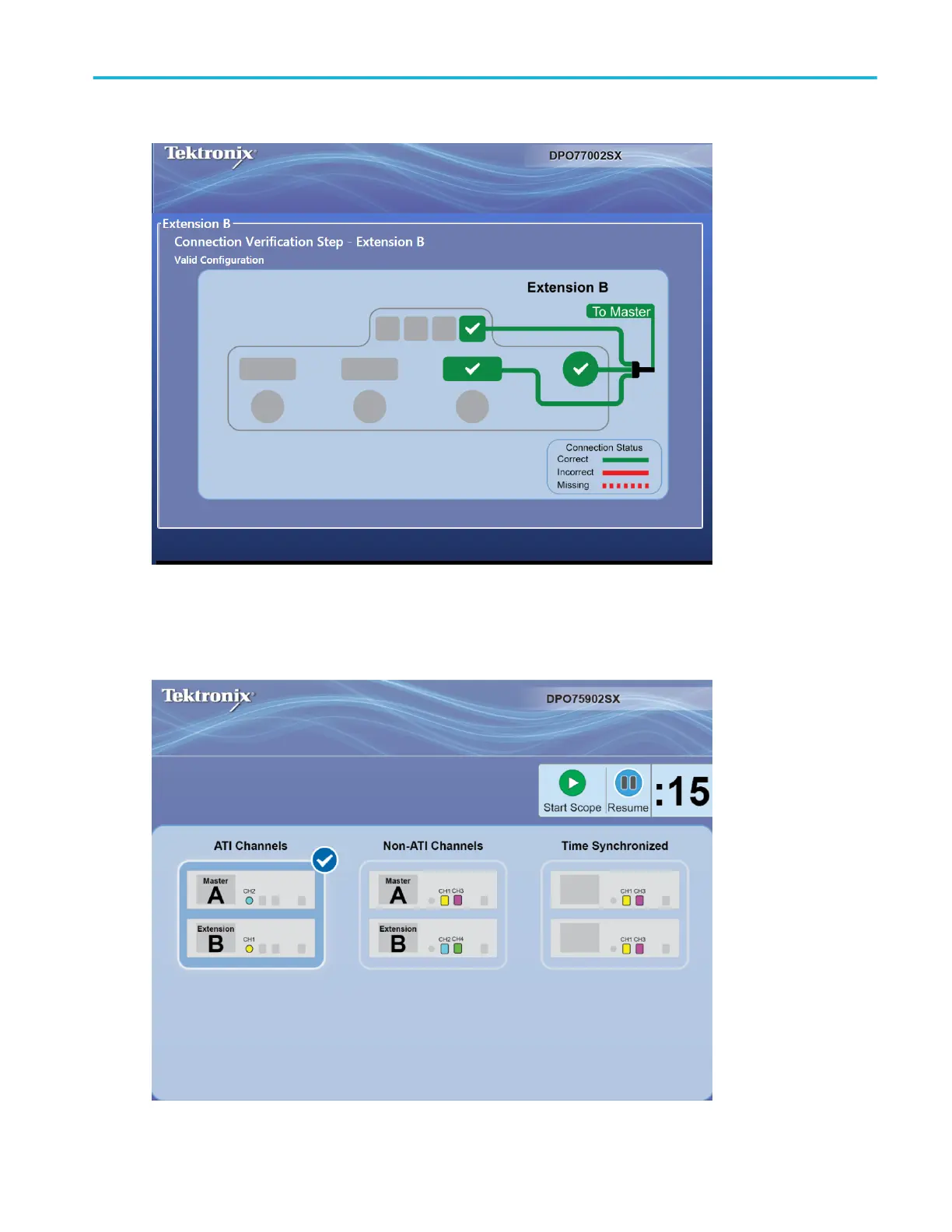

After the multi-instrument connections are verified and the instruments display their operating status displays, the master displays

its status and timer display. Pause the timer if you have additional changes to make before the oscilloscope application starts.

Press Start Scope to bypass the timer. When the timer runs down, the oscilloscope application starts.

About Tektronix oscilloscopes

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 55

Default Chapter5
