If your multi-instrument configuration includes ATI instruments, you have the opportunity to select either ATI Channels or non-ATI
(TekConnect) Channels. In this example ATI Channels are selected.
NOTE. You also have the option to select Time Synchronized mode of all TekConnect channels. In this mode acquisitions are
time synchronized and the Master controls the horizontal, record length, and trigger settings of all TekConnect channels. To
ensure all channels are synchronized, operate the multi-instrument configuration in single sequence mode. Retrieve all
TekConnect channel data using programmable interface commands. Waveform data is not sent to the Master. If you plan to use
Time Synchronized mode, contact your Tektronix representative for additional information.

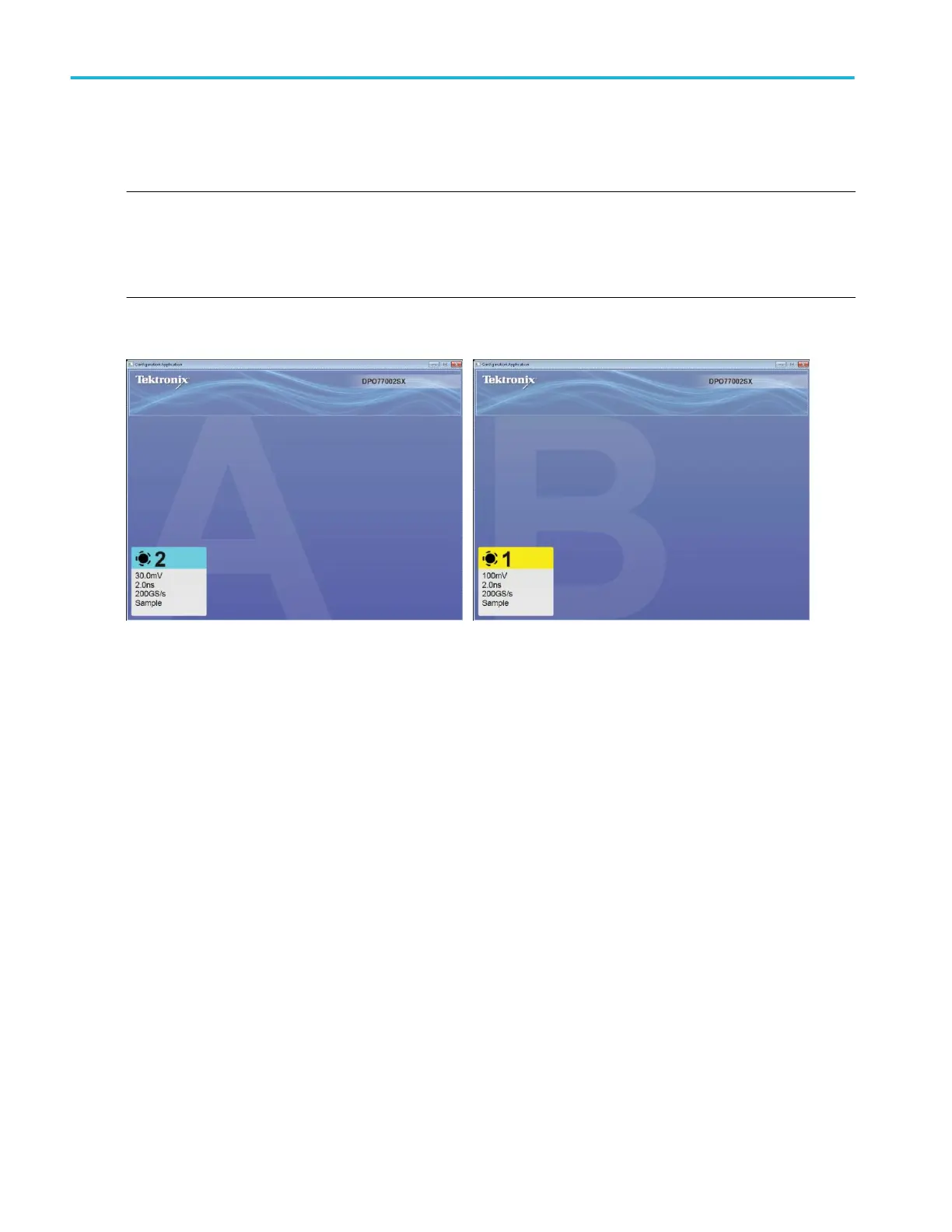

After the multi-instrument connections are verified, the instruments display their operating status displays. In this example the
Master (A) is acquiring on channel 2 (ATI). The Extension (B) is acquiring on channel 2 (ATI) and is displayed as channel 1.
The master display identifies itself as the Master and identifies the channels being acquired.
To switch between the Configuration Application and the oscilloscope display (on the oscilloscope), use Alt-Tab. To close the
Configuration Application, click the x. If the x is not visible, make the x visible by double clicking in the upper right hand corner of
the Configuration Application.
About Tektronix oscilloscopes
56 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
