Pinpoint trigge

6. Select the data format.

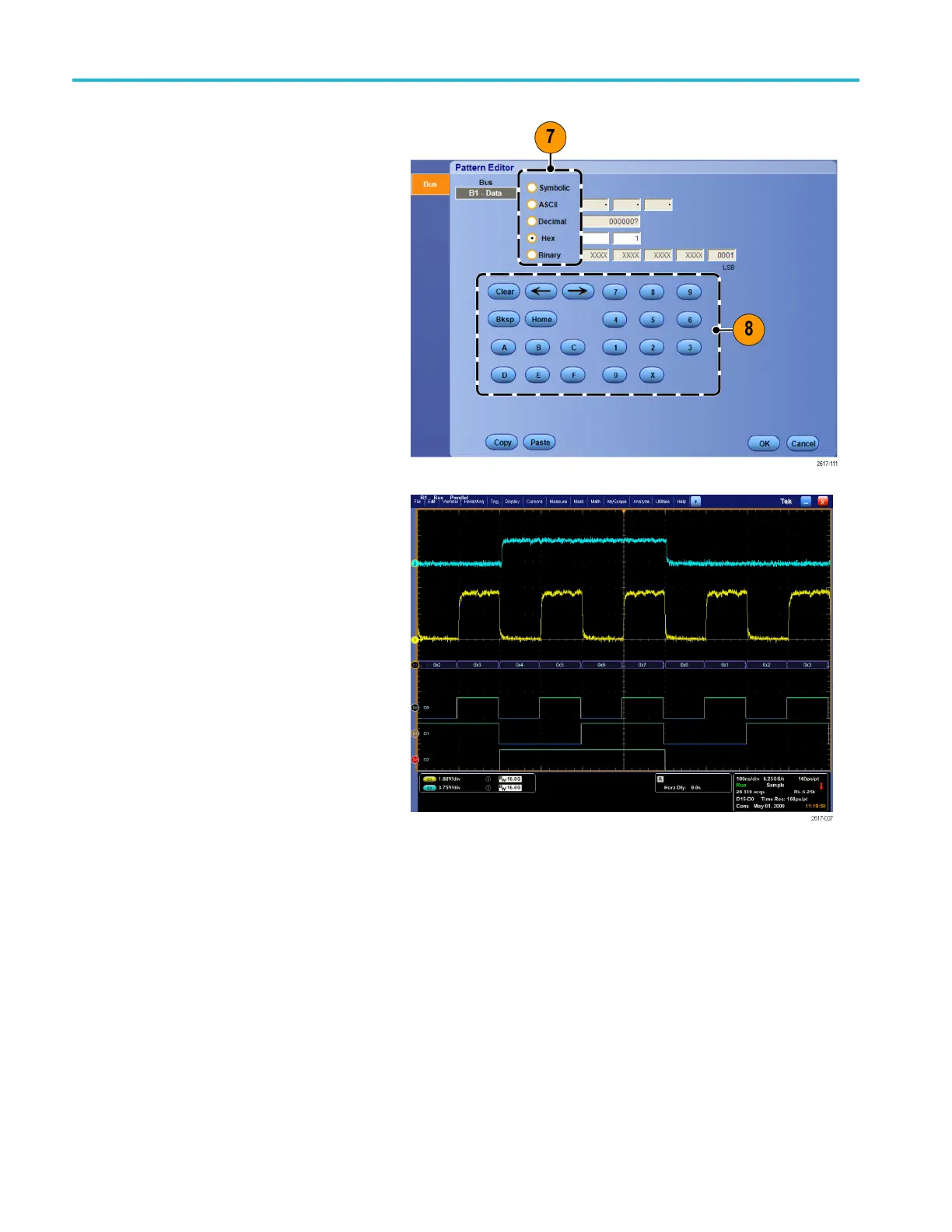

7. Set the pattern to trigger on using the

keypad.

8. Analyze your waveforms.

82 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
