Saving and recal

ling information

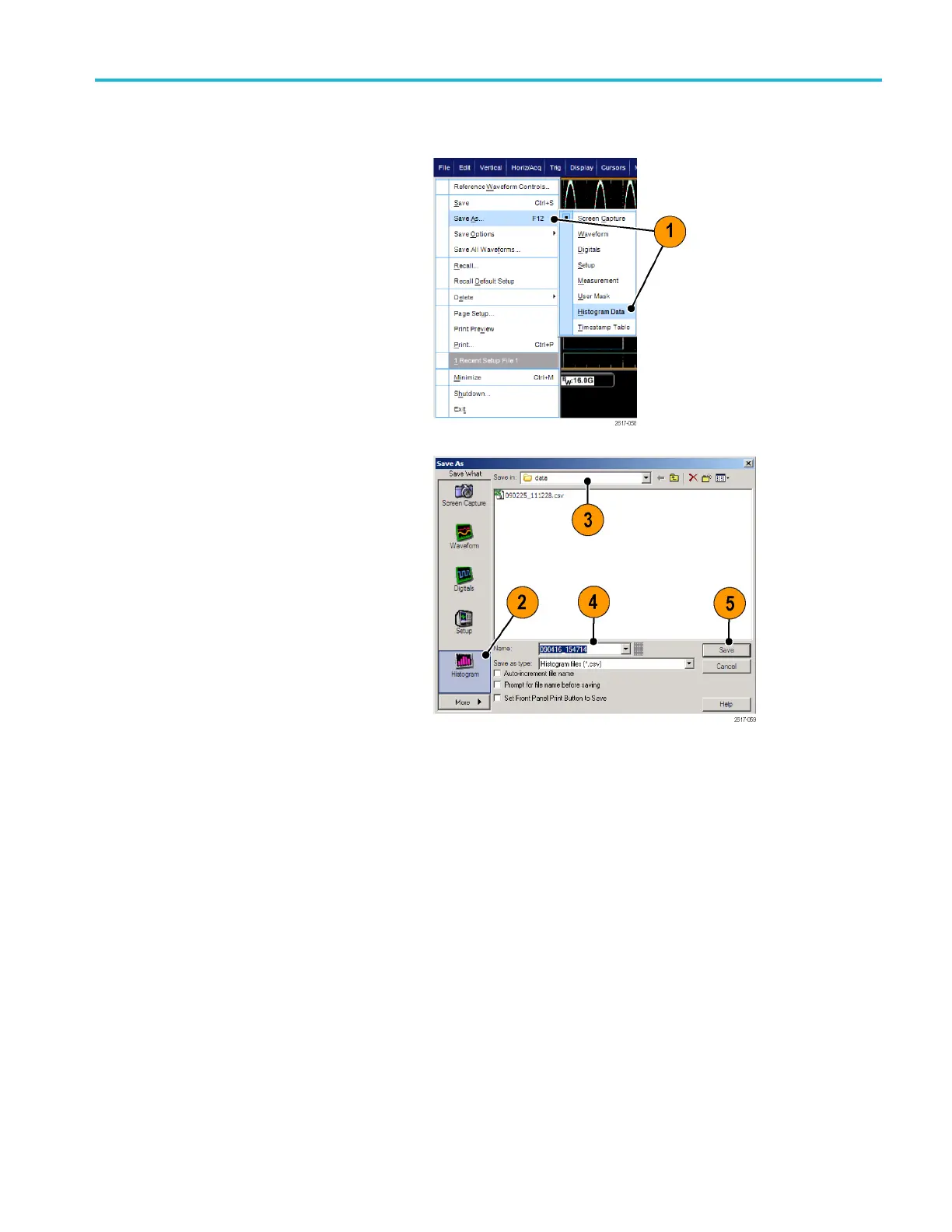

Saving histogram data

1. Select File > S

ave or Save As >

Histogram Data.

2. Select Histog ram . Depending on

previous selections, you may need to

select More > Histogram Data to display

the Histogram selection.

3. Select the location to save the histogram.

4. Type in a name for the histogram, and

then select a ﬁle type.

5. Click S ave.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 161
