Tektronix MSO5104B - Saving User Masks

To Next Page

To Previous Page

Saving and recal

ling information

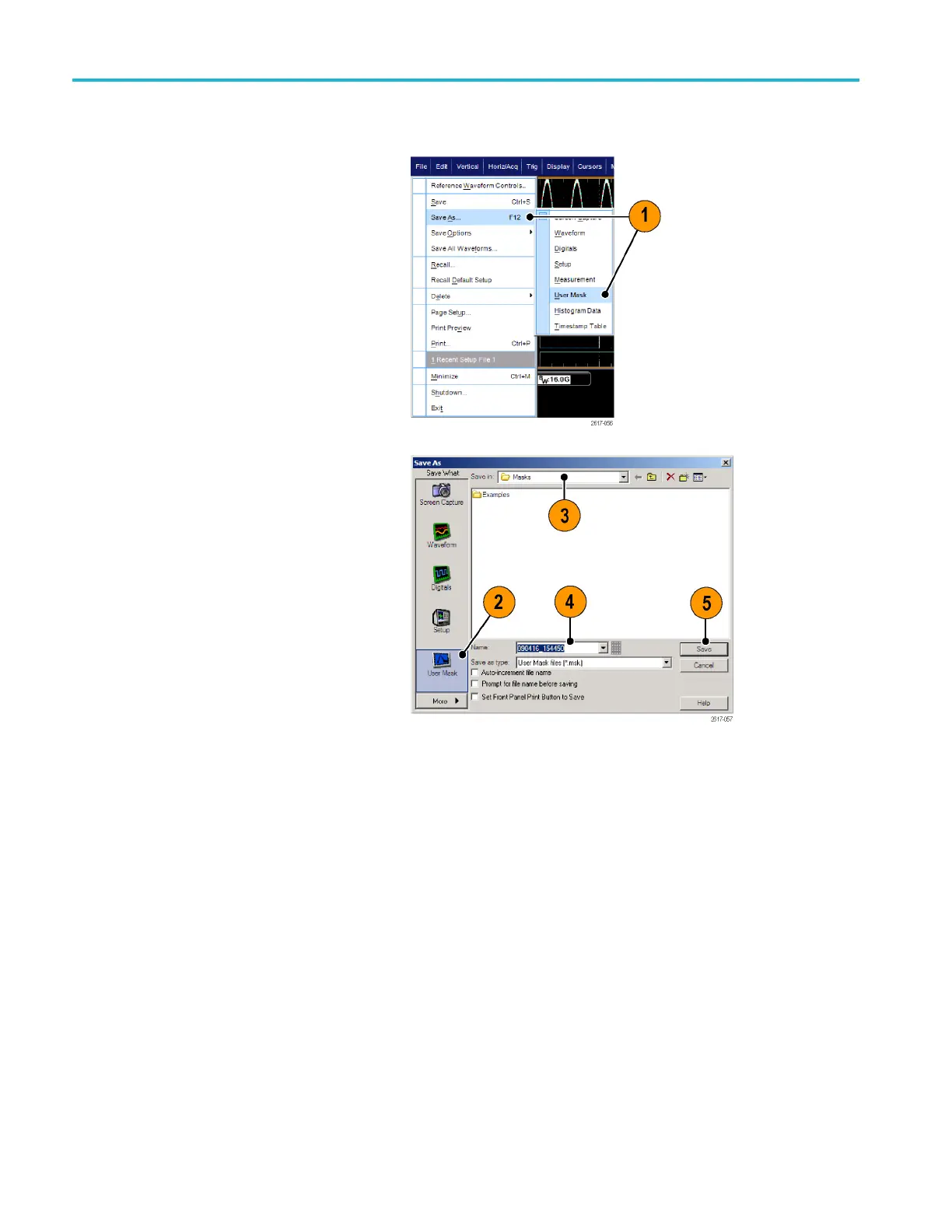

Saving user masks

1. Select File > S

ave or Save As > User

Mask.

2. Click User Mask.

3. Selectthelocationtosavethemask.

4. Type in a name for the mask, and then

select a ﬁle type.

5. Click Save.
