Appendix C

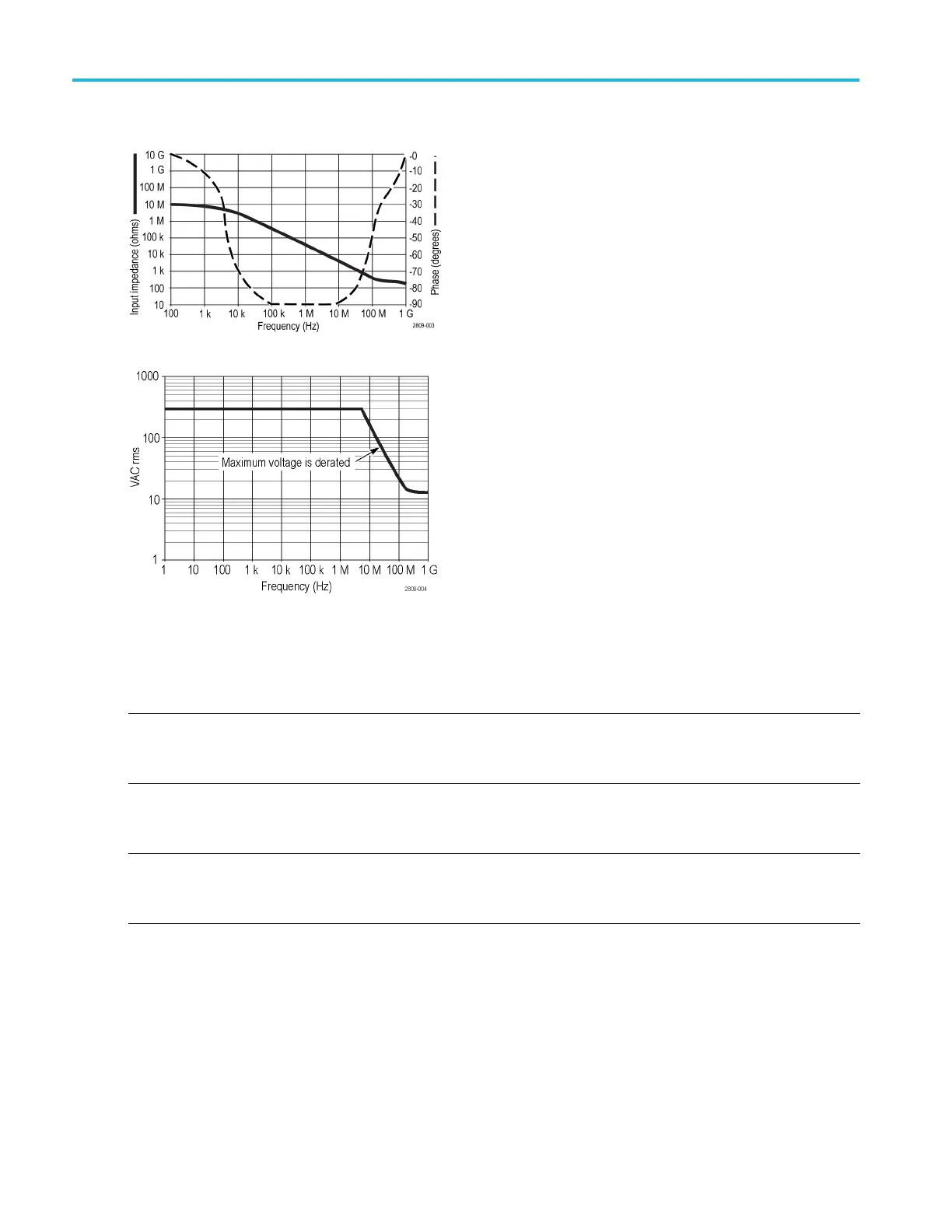

Performance graphs
Refer to the reference lead derating curve above when making fl oating measurements.
Table 2: Environmental specifications
Characteristics Description
Temperature
Operating
Nonoperating
–15 °C to +65 °C (+5 °F to +149 °F)
–62 °C to +85 °C (–80 °F to +185 °F)
Humidity
Operating
Nonoperating
5% to 95% relative humidity @ up to 30 °C
5% to 45% relative humidity @30 °C up to 50 °C
Altitude
Operating
Nonoperating
3.0 km (9,842 ft) maximum
12.2 km (40,000 ft) maximum
184 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
