Saving and recal

ling information

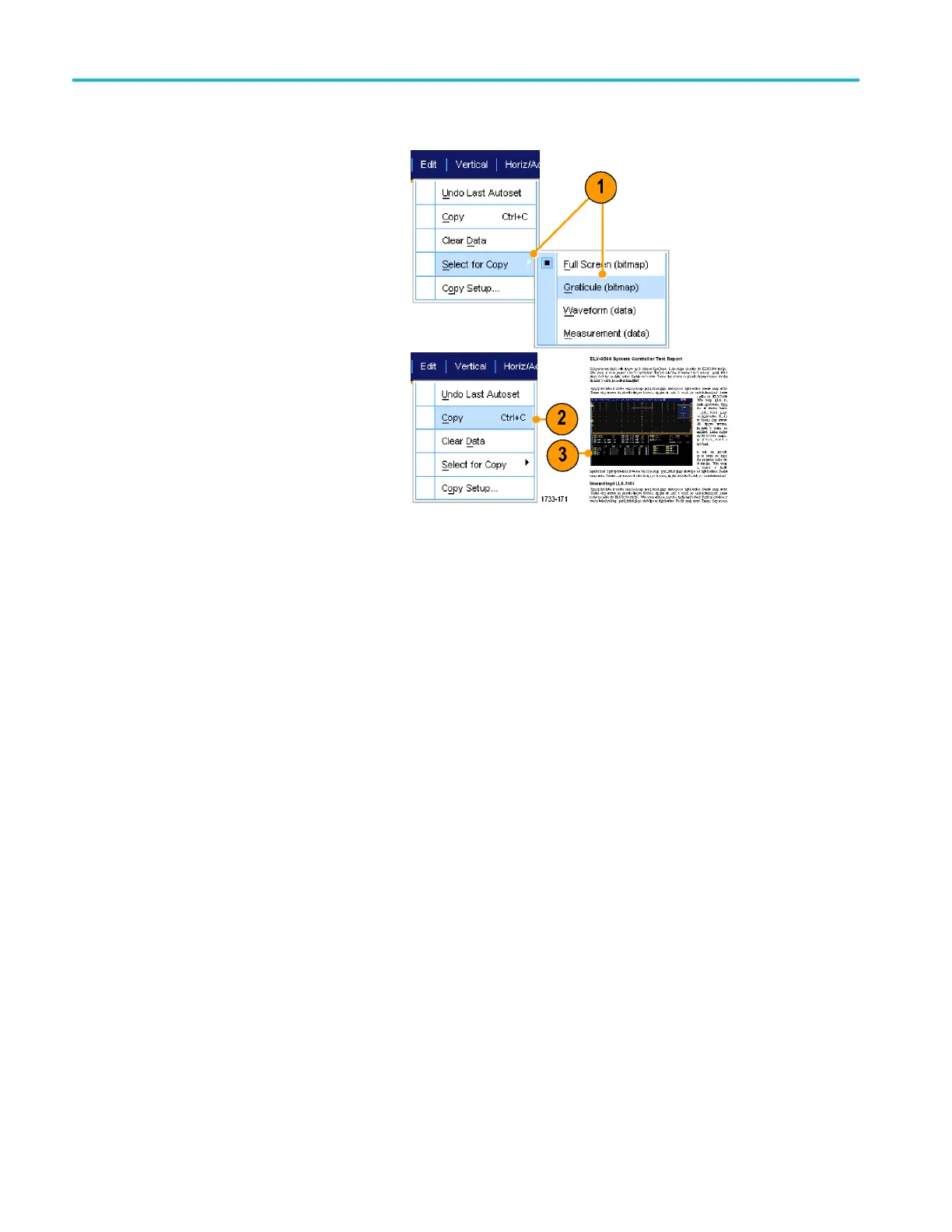

To copy images, waveforms, or measurements, use the following procedure:

1. Select the item that you w ant to copy.

2. Select Edit>Copyor press Ctrl + C.

3. Press Ctrl + V to paste the item into a

Windows application.

164 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
