Install your ins

trument

DPO7000C models

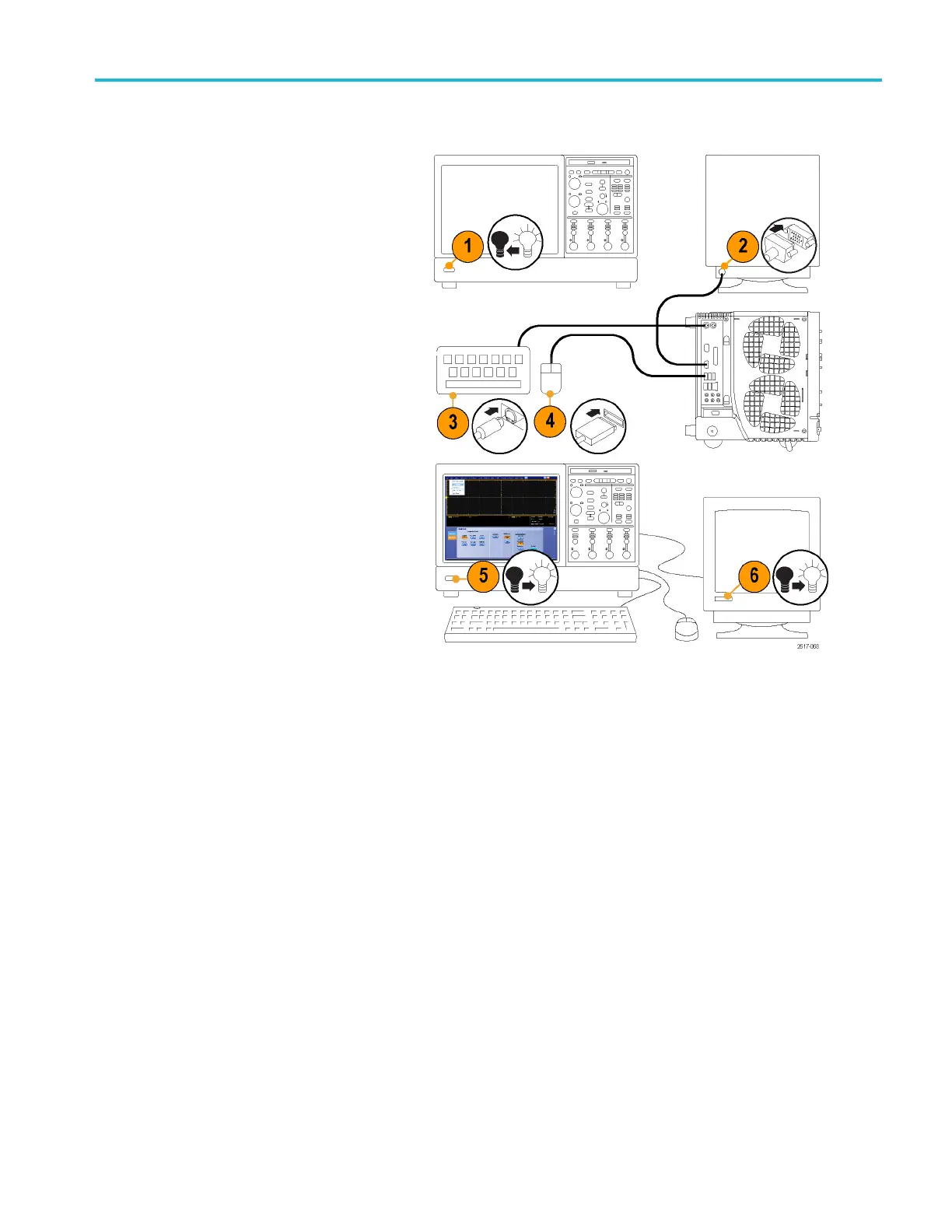

1. Turn off power

2. Connect secon

d monitor.

3. Connect key

board.

4. Connect mou

se.

5. Turn on in

strument power.

6. Turn on mo

nitor power.

DPO7000C Series

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 13
