Display a wavefo
rm

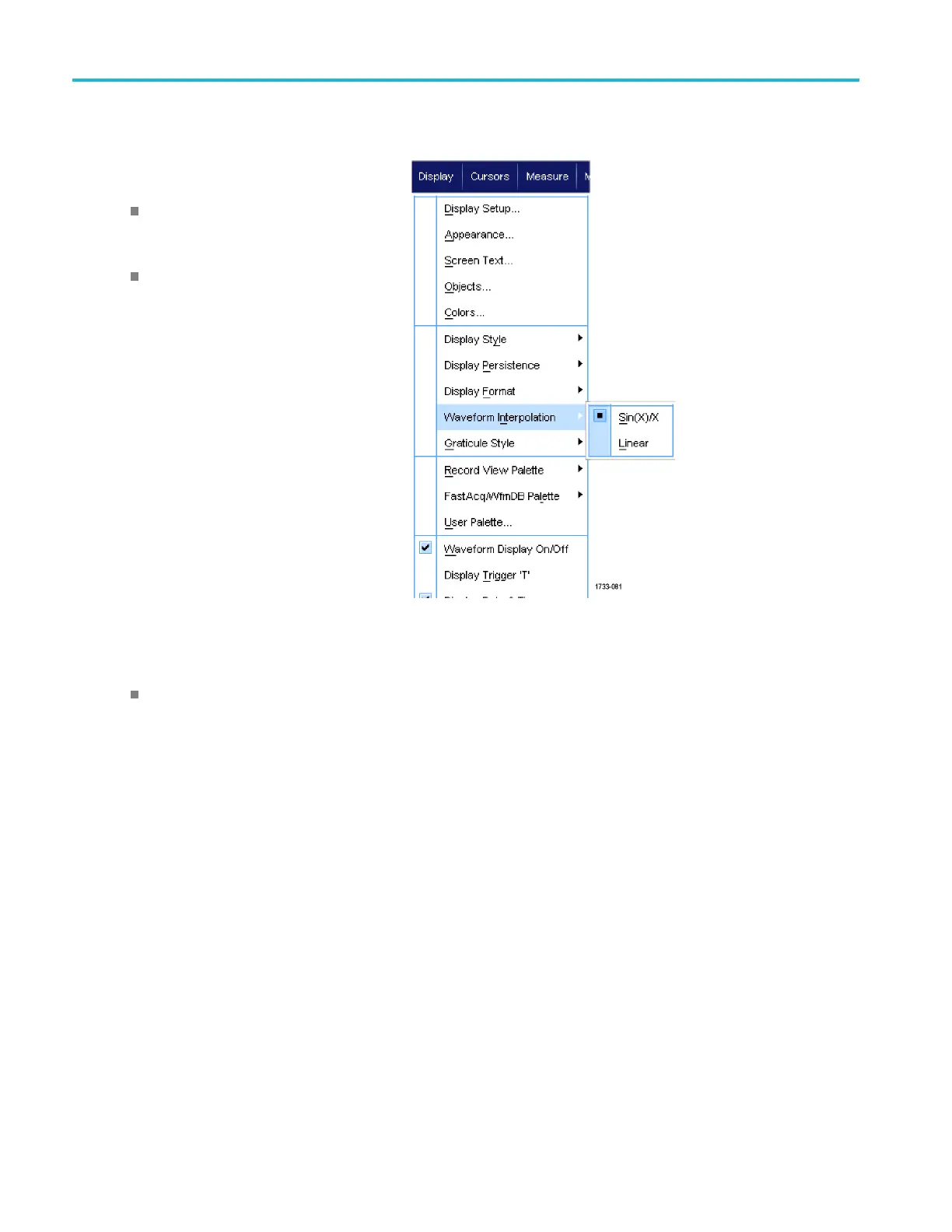

Selecting the Waveform Interpolation
Select Displa
y > Waveform Interpolation,
and then select one of the following:
Sin(X)/X interpolation computes record
points using a curve t between the
actual sampl
es acquired.
Linear inter
polation computes record
points between actual acquired samples
by using a straight line t.
Quick tips
Sin(X)/X interpolation is the default interpolation mode. It requires fewer actual sample points than linear interpolation to
accurately represent the waveform.
94 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual

Table of Contents

Other manuals for Tektronix MSO71604C

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tektronix MSO71604C and is the answer not in the manual?

Tektronix MSO71604C Specifications

General IconGeneral
Bandwidth16 GHz
Channels4
Sample Rate50 GS/s
Analog Channels4
Digital Channels16
Rise Time22 ps
Input CouplingAC, DC, GND
Operating Temperature0 °C to +50 °C
Vertical Resolution8 bits
Display12.1-inch LCD
Input Impedance1 MΩ
Maximum Input Voltage5 Vrms
Trigger TypesEdge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
InterfaceUSB, LAN
