Getting acquain
ted with your instrument

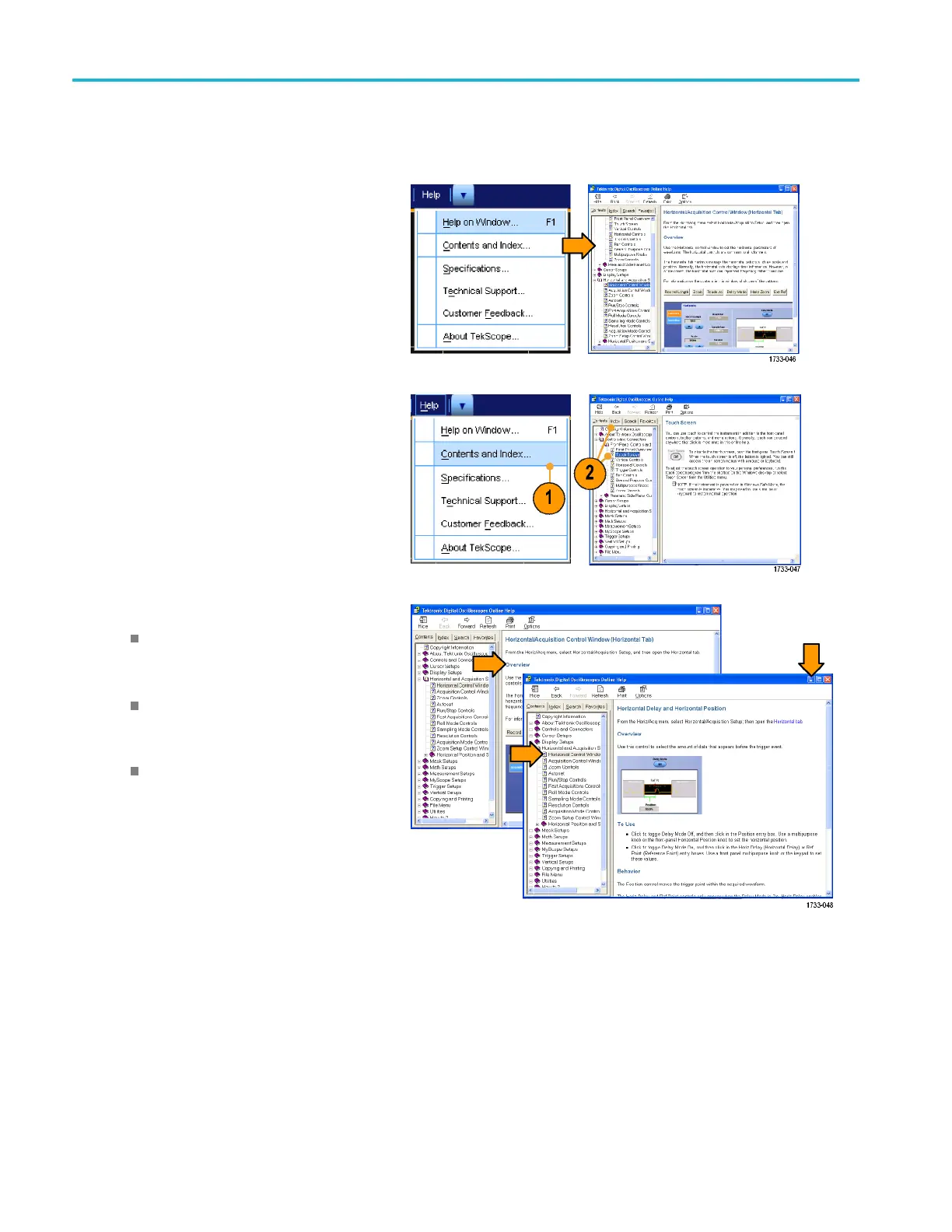

Accessing online help
In-depth information is available in the onlin e help on all the features of your instrument.
To access context-sensitive help on the
active window, select Help > Help on
Window... or press F1.
1. To access any topic in the help system,
select He lp > Contents and Index....
2. Use the Contents, Index, Search, or
Favorites tab to select the topic, and
then click Display.
To navigate within the help system:
Click a button in a help window to
navigate between the O verview and
specific topics.
Click the Minimize button in the help
window to move help out of the way so
you can operate the instrument.
Click Alt and Tab to see the last help
topic again.
28 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
