Saving and recal
ling information

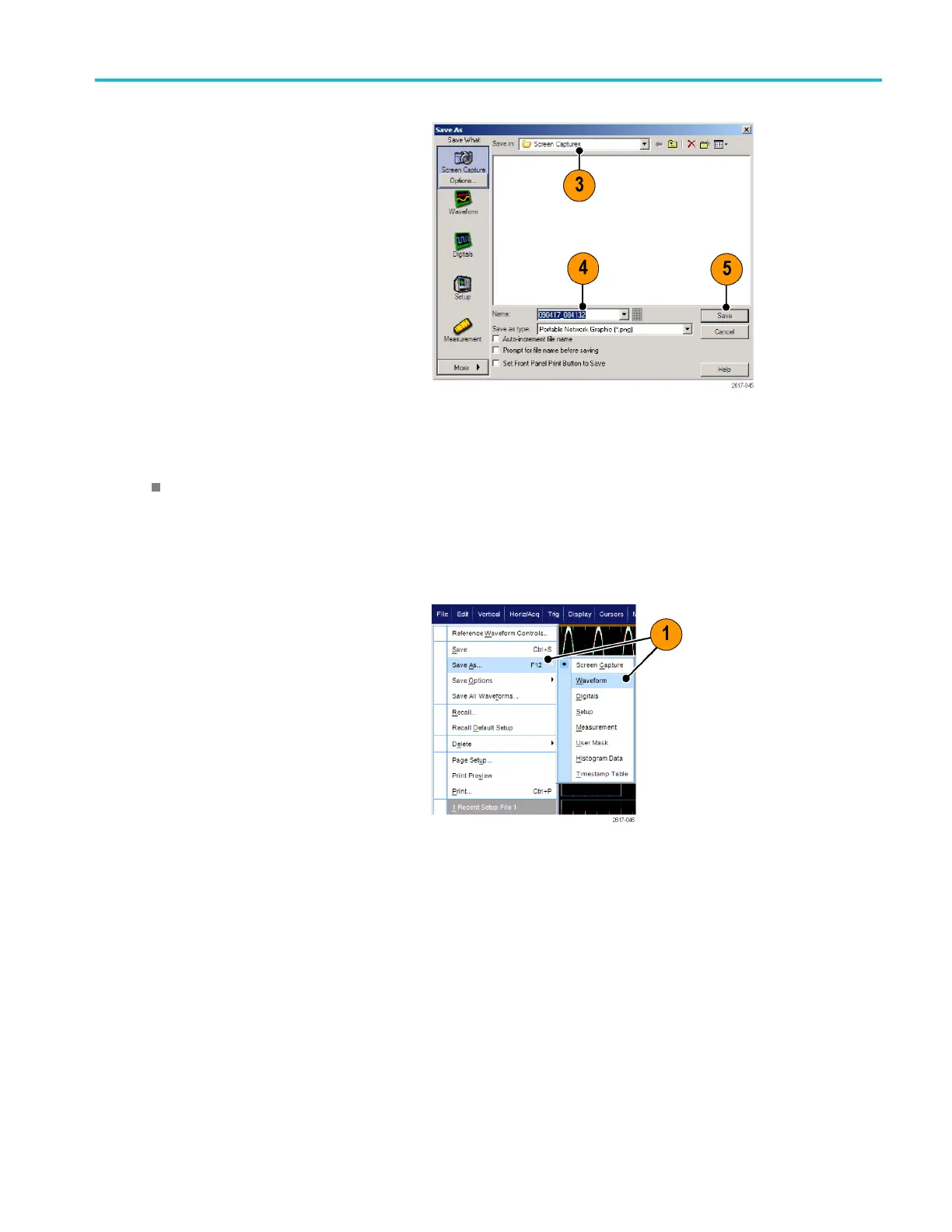

3. Select the location to save the screen
capture.
4. Type in a name for the screen capture,
or use the defa
ult name, and then select
a file type.
5. Click S ave.
Quick tip
To quickly save multiple screen captures, select Set Front Panel Print Button to S ave, and then click Save. You can
now save a screen capture by pushing the front panel Print button.
Saving w
aveforms
1. To save waveform s, select F ile > Save
or Save As > Waveform....
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 153

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
