Acquisition
Using Autoset
Use Autoset to quickly and automatically set up the instrument (acquisition, horizontal, trigger, and vertical) based on the
characteristics of the input signal. Autoset makes adjustments to the signal such that the waveform displays two or three
cycles with the trigger level near the midlevel.

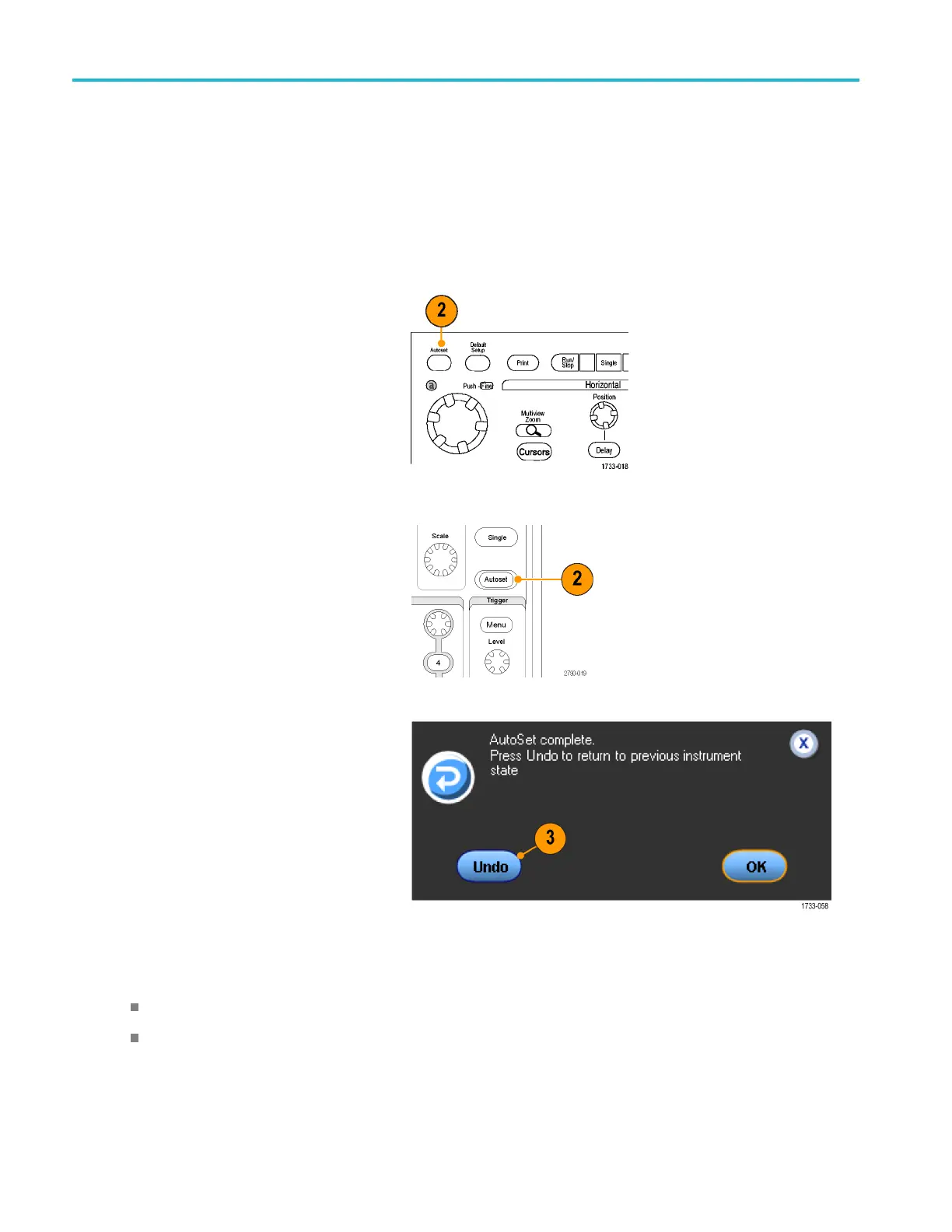

1. Connect the probe, and then select the
input channel. (See page 33, Setting up
analog signal input.)
2. Push the AUTOSET button to execute
an Autoset.
MSO/DPO70000DX, MSO/DPO70000C, and DPO7000C Series
MSO5000B and DPO5000B Series
3. Click Undo to undo the last Autoset.
Parameters that are not affected by
Autoset retain their settings.
Quick tips
Aut
oset automatically sets up the analog channels.
On i
nstruments with iCapture, autoset automatically sets up the iCapture channels.
36 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
