Saving and recal

ling information

Copying your results to the clipboard

Use the following procedure to set the output content and form at for images, waveforms, or measurements to be copied

to the Microsoft clipboard.

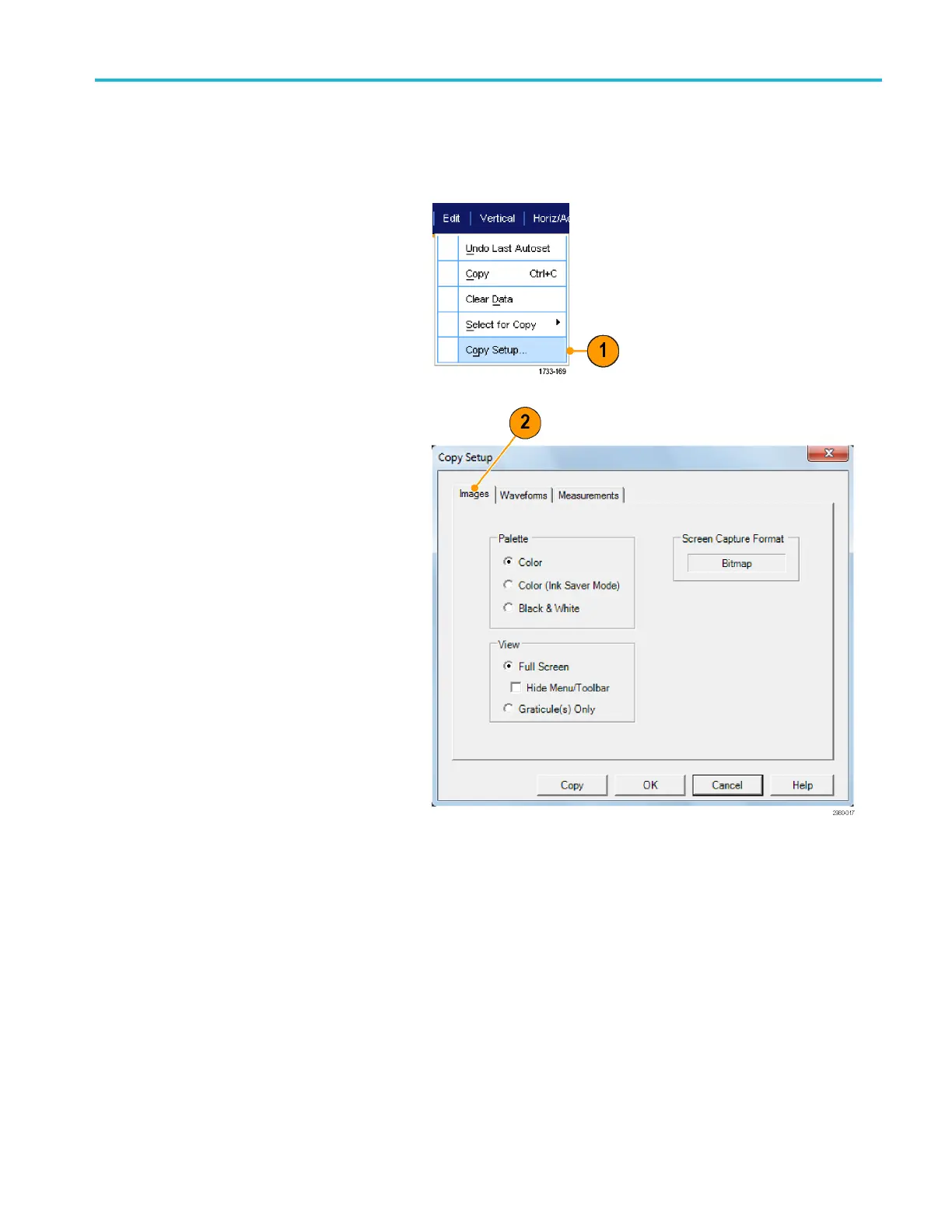

1. Select Edit > Copy Setup... .

2. Click the Images, Waveforms,or

Measurements tab, and then select the

desired options.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 163
