MyScope allows you to create custom control windows that include only the controls that you use regularly. Instead of
switching between several control windows, put the controls you use into a custom control window.
This section contains procedures for creating and using MyScope control windows. Detailed information is available
in the online help.
Creating a new MyScope control window

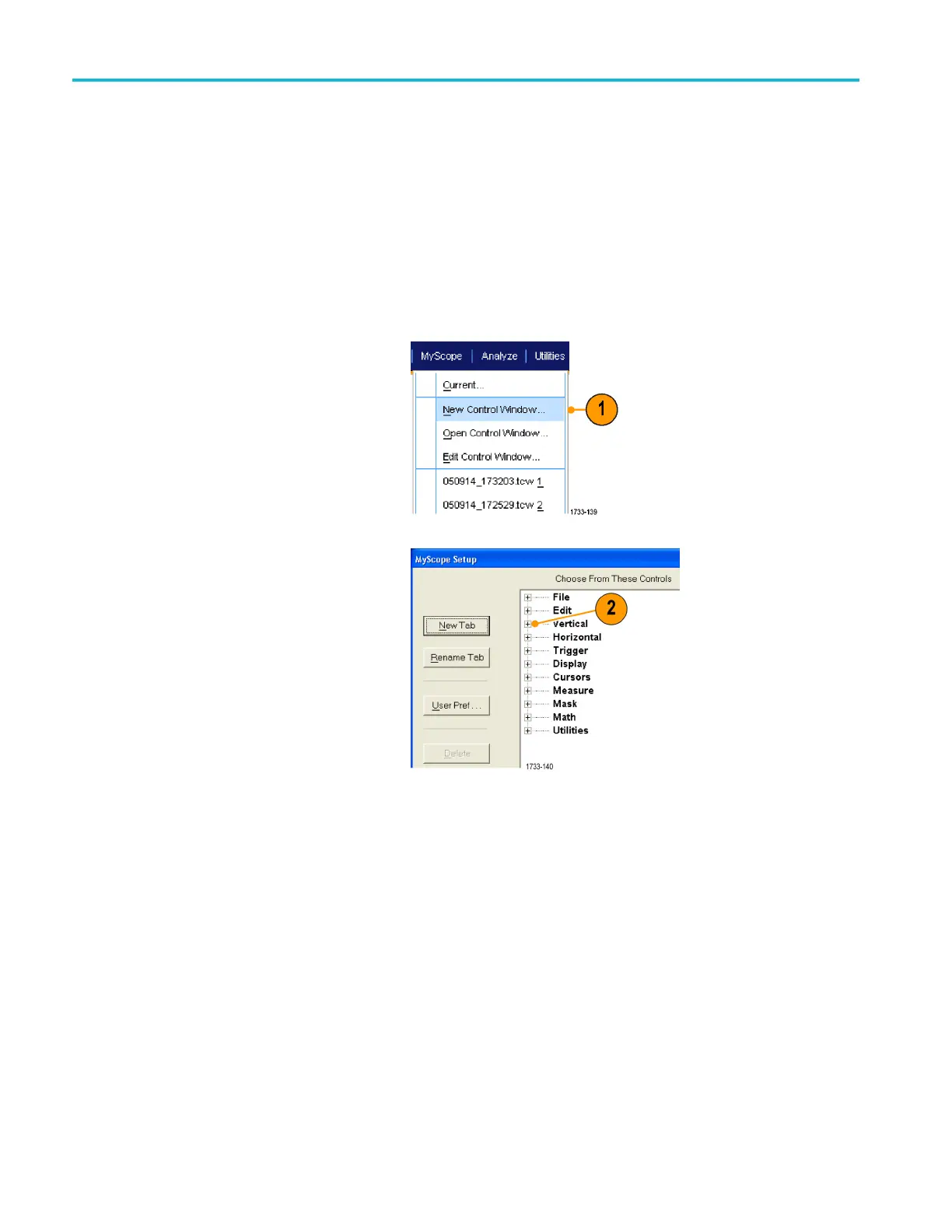

1. Select MyScope > New Control
Window....
2. Click + to
expand a category. Controls
that you c an add to your MyScope
control window are contained within
each cat
egory. The categories match the
menu bar to help you find the controls
you normally use.
146 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
