Display a wavefo
rm

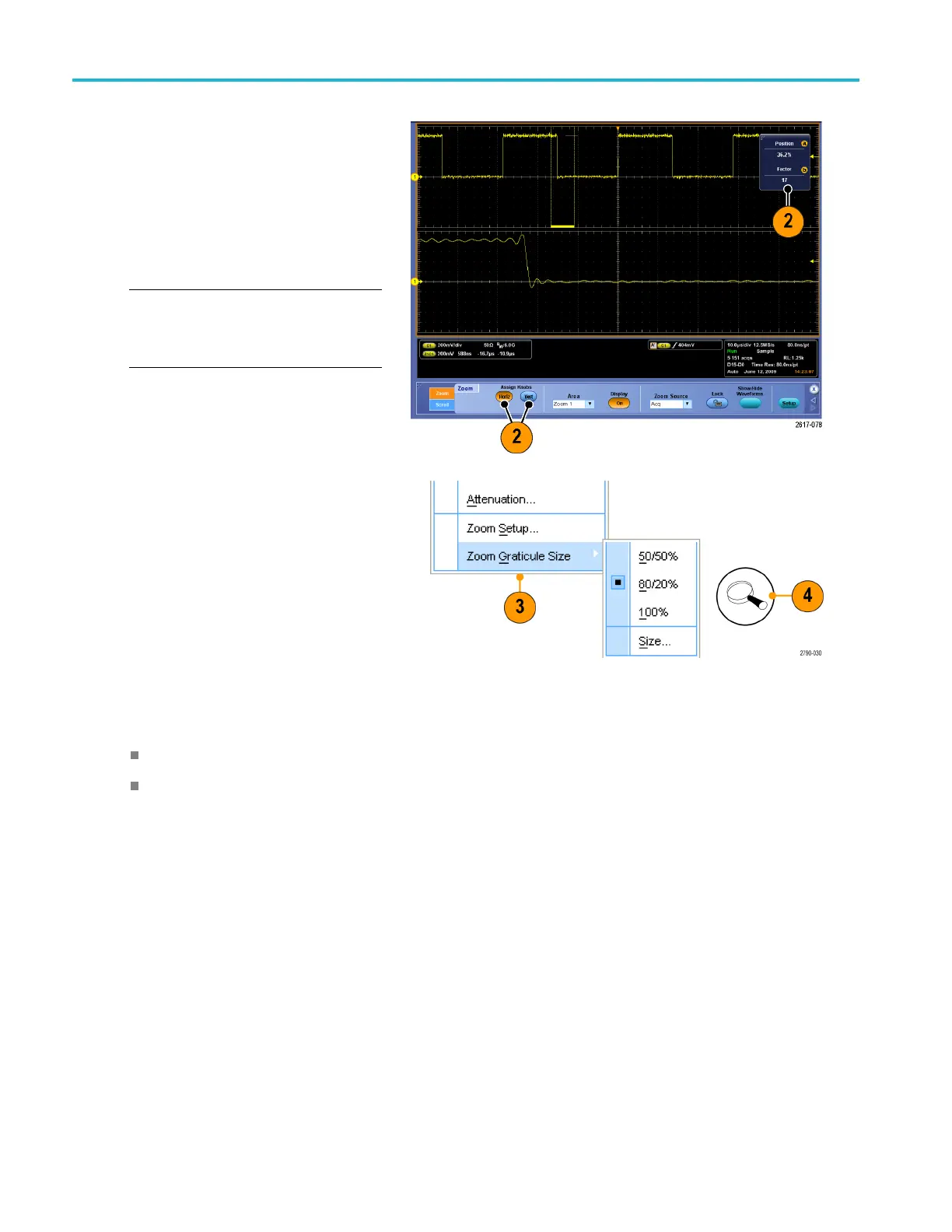

2. Push HORIZ or VERT to select which
axis to magnify in the zoom graticule.
Use the multip
urpose knobs to adjust
scale and position of the magnified
waveform.
In this examp
le the main graticule is
the top half of the graticule and the
zoomed graticule is the bottom half of
the graticul
e.
NOTE. You can hide or display zoomed
waveformsbypressingShow/Hide
Waveforms a
nd then checking which
zoomed waveforms to display.
3. To adjust the zoom graticule size, select
Zoom Graticule Size from either the
Vertical
or Horiz/Acq menus.
4. If M ultiV
iew Zoom is on but the readouts
are not attached to the zoom controls,
press the MultiView Zoom button to
attach t
he readouts to the zoom controls.
Press the M ultiView Zoom button again
to turn zoom off.
Quick tips
Use the Zoom Setup menu to change the graticule size of the zoomed waveform.
Use Wave Inspector to manage long record length waveforms. (See page 105, Using Wave Inspector to manage
long record length waveforms.)
100 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
